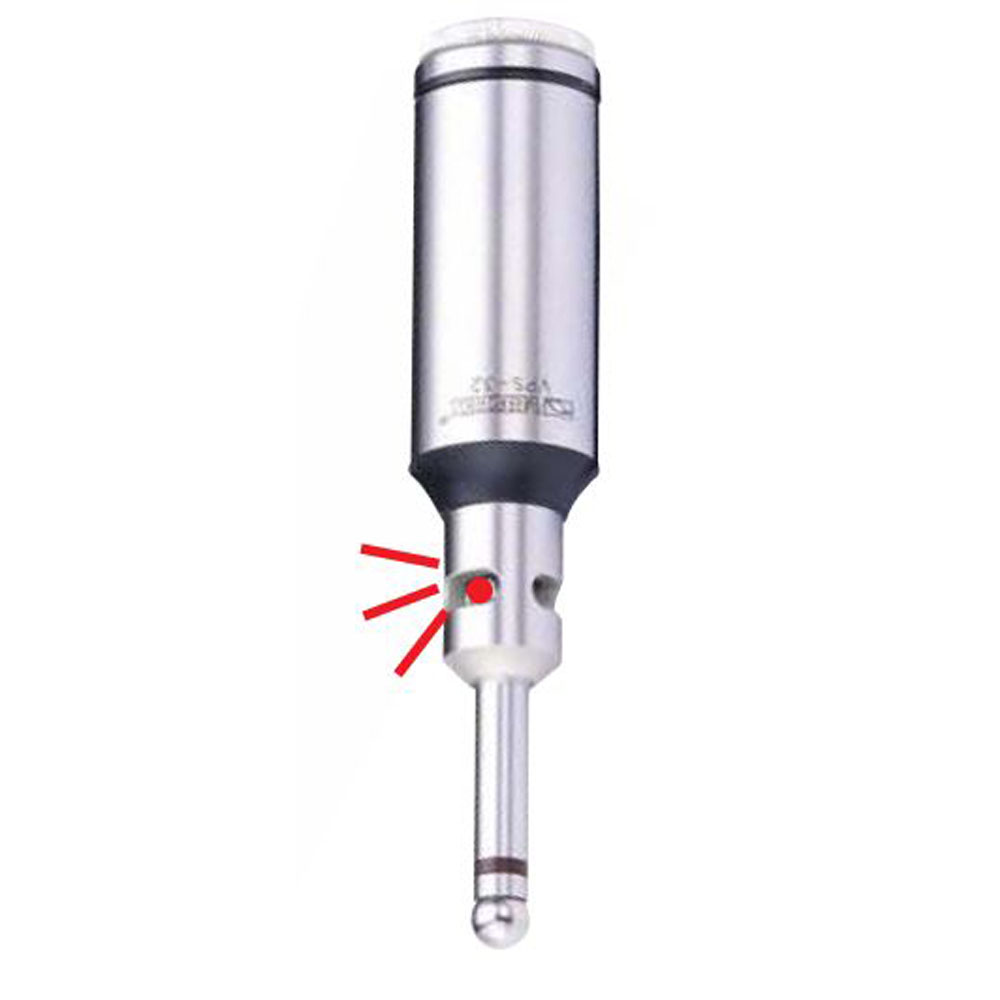

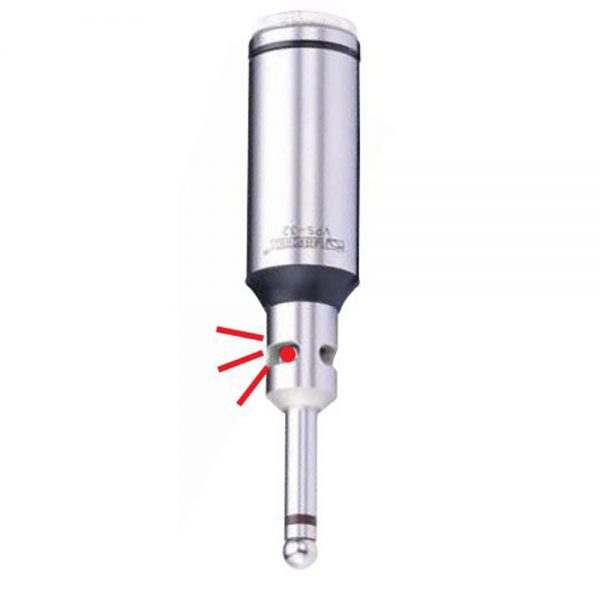

VERTEX VPS-32 เกจหาขอบชิ้นงาน รุ่นแสงสีแดง
• เครื่องมือตรวจสอบ VPS-32 รุ่น แสงสีแดง Optical
• ความแม่นยำ 5ไมครอน ±0.005 mm.
• สินค้าคุณภาพ จากใต้หวัน
Product Description
VERTEX VPS-32 เกจหาขอบชิ้นงาน รุ่นแสงสีแดง
Code : 3402-004
Specifications ข้อมูลจำเพาะ
• Shank ด้ามจับ : Ø32 mm
• หน้าสัมผัสชิ้นงาน d2 : 10 mm
• Battery Type ใช้ถ่าน : UM-5#(SP) x2P/R1./1.5V
• Accuracy ความแม่นยำ : ±0.005 mm
• Weight น้ำหนัก : 0.7 kg.
With Out Beeper

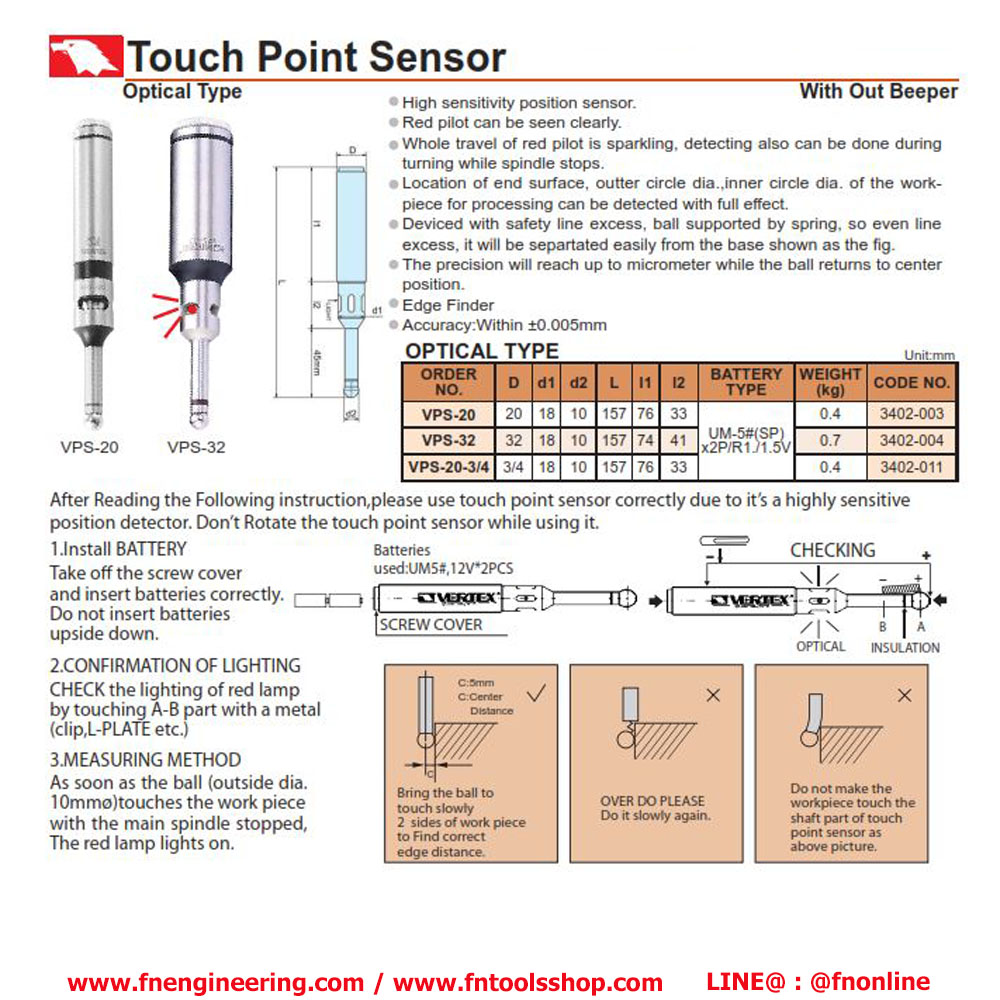

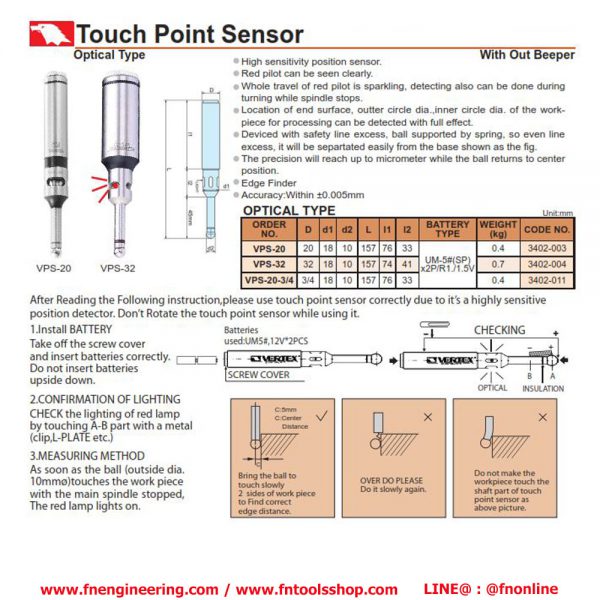

• High sensitivity position sensor. |
• Red pilot can be seen clearly. |
• Whole travel of red pilot is sparkling, detecting also can be done during turning while spindle stops. |
• Location of end surface, outter circle dia.,inner circle dia. of the workpiece for processing can be detected with full effect. |
• Deviced with safety line excess, ball supported by spring, so even line |
• The precision will reach up to micrometer while the ball returns to center position. |
น้ำหนัก | 0.7 kg |
---|
