TRCF04P(IEC) เฉพาะหัวเกียร์หน้าแปลน ใช้กับมอเตอร์ B5 1 – 5.5 HP อัตราทด 3.74∼58.09

• TRC Series helical gearbox เป็นผลิตภัณฑ์รุ่นใหม่ที่ออกแบบตามระบบโมดูลาร์ สามารถเชื่อมต่อกับมอเตอร์ เช่น มอเตอร์มาตรฐาน IEC, มอเตอร์เบรก, มอเตอร์ป้องกันการระเบิด, มอเตอร์ความถี่, เซอร์โวมอเตอร์ และอื่น ๆ
• เหมาะสำหรับงานอุตสาหกรรมเบา ผลิตภัณฑ์นี้ใช้กันอย่างแพร่หลายในสิ่งทอ อาหาร เครื่องดื่ม ยาสูบ เขตอุตสาหกรรมโลจิสติกส์ ฯลฯและงานหนักทุกชนิด
• ราคาไม่รวมมอเตอร์
** (สั่งซื้อ ระบุอัตราทดที่ต้องการ)

รหัสสินค้า: TRCF04P(IEC) หมวดหมู่: Brands:

16,000.00฿ 8,800.00฿ ราคายังไม่รวมภาษี

มีสินค้าอยู่ 30

฿
Compare

Product Description

TRCF04P(IEC) เฉพาะหัวเกียร์หน้าแปลน ใช้กับมอเตอร์ B5 1 – 5.5 HP อัตราทด 3.74∼58.09

• TRC series small helical gear motor

Code : TRCF04P(IEC)

Description รายละเอียด

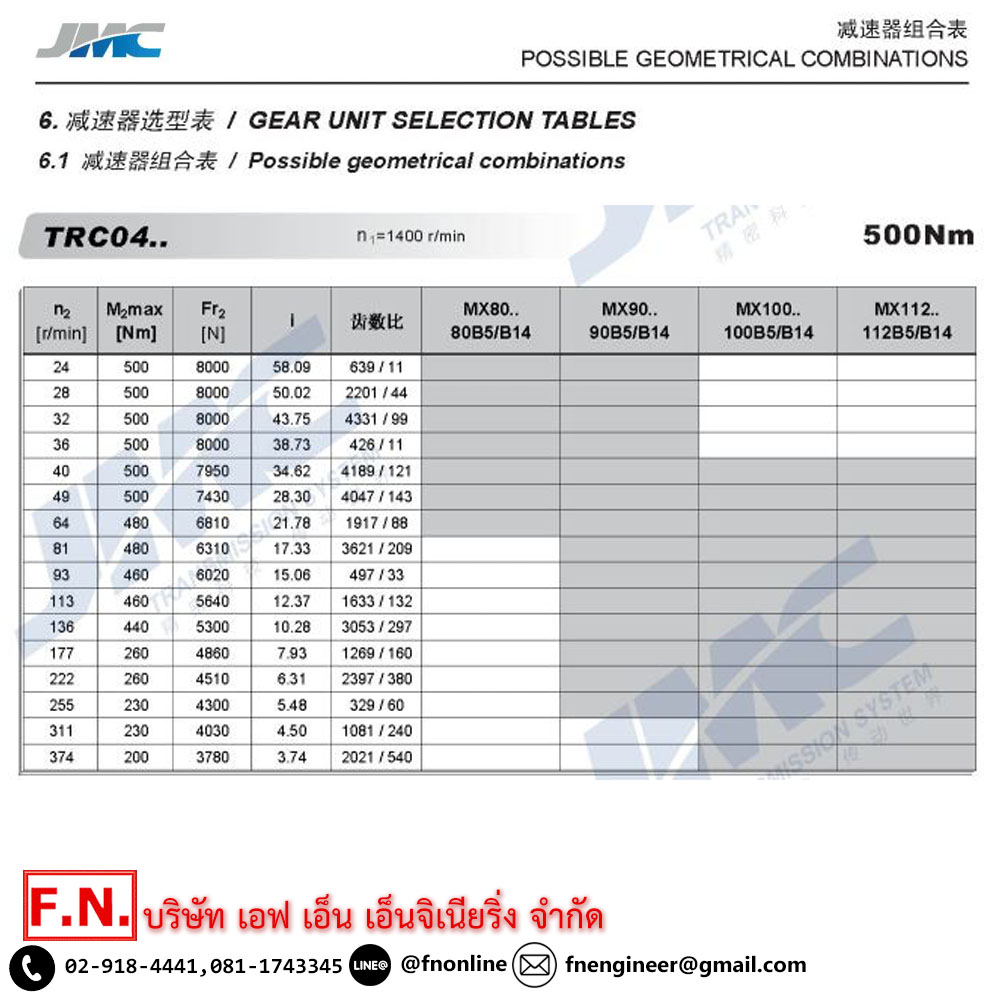

• Ratio อัตราทดรอบเลือกใช้ได้ : 3.74,4.50,5.48,6.31,7.93,10.28,12.37,15.06,
17.33,21.78,28.30,34.62,38.73,43.75,50.02,58.09
• ความเร็วเพลาออก Speed (n2 r/min ):  24-374 รอบ/นาที
• แรงบิด M2 N.M : 200-500 N*M
• ใช้กับมอเตอร์หน้าแปลน B5 : 1 – 5.5 HP







TRC Series helical gearbox is a new generation product which designed basing on the modular system, It can be connected respectively with motors such as IEC standard motor, brake motor, explosion-proof motor, frequency motor, servo motor and so on. it has 4 types(01-02-03-04),power from 0.12kw to 11kw, ratio from 3.66 to 58.78, Max torque from 120Nm to 1550Nm.It can be connect discretionary(foot or flange) and use multi-mounting positions accordingly. This product is widely used in textile, foodstuff, beverage,tobacco, logistics industrial fields,etc.
