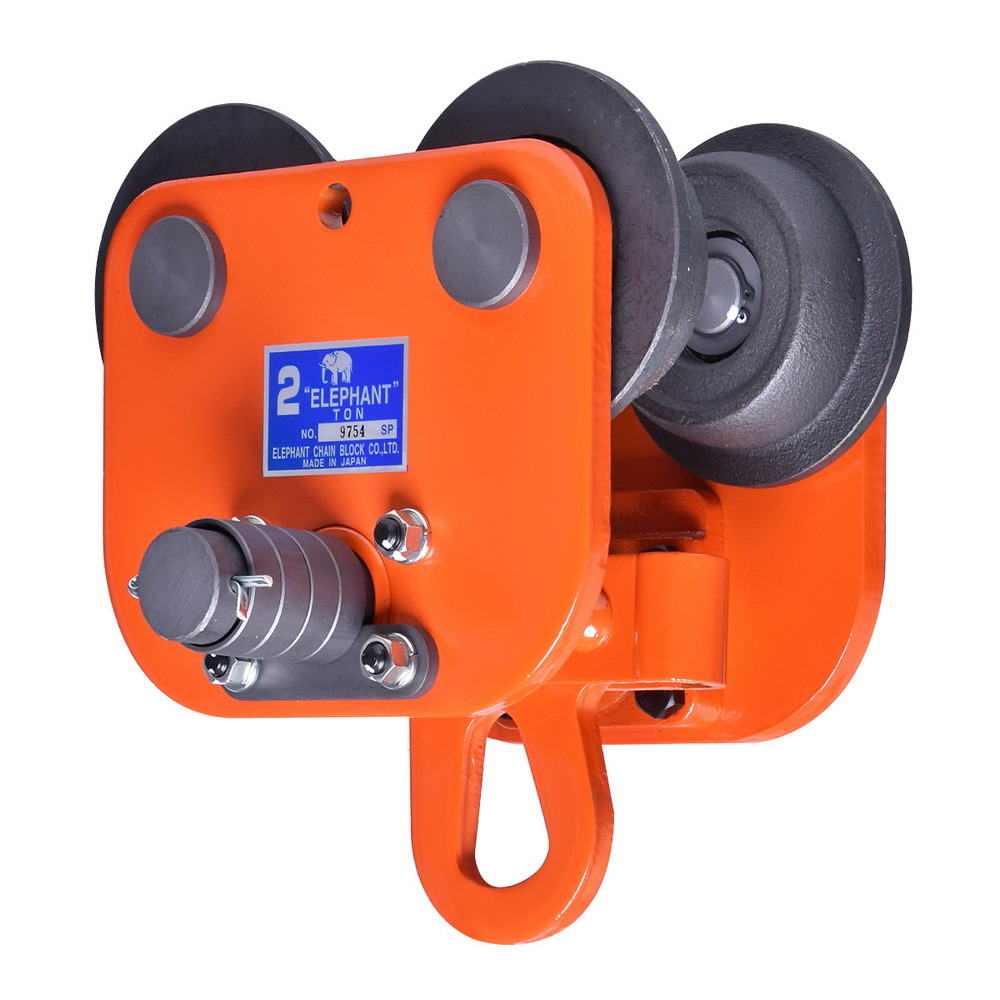

P-2 รอกวิ่งบนราง ตราช้าง ชนิดธรรมดา 2 ตัน
• สามารถปรับได้ตามความกว้างของบีมในสามขั้นตอน ออกแบบให้ใช้กับงานหนัก มีความแข็งแกร่งทนทาน
• ล้อรอกวิ่งพอดีกับทั้ง i-beam และ H-beam
• ตลับลูกปืนคุณภาพสูงที่ใช้ในรอกช่วยให้การเคลื่อนที่ของล้อเป็นไปอย่างราบรื่น
• สินค้า จากญี่ปุ่น
รหัสสินค้า: E021-0470
หมวดหมู่: รอกวิ่งบนราง แบบธรรมดา แบบเกียร์
Product Description
รอกวิ่งบนราง ตราช้าง ชนิดธรรมดา 2 ตัน Adjustable Plain trolley
• P SERIES
Model : E021-0470
Specifications ข้อมูลจำเพาะ
• ความสามารถ Capacity : 2.0 ton
• ความกว้าง I-Beam :
– No Collars : 150 mm
– With 2 Collars : 125 mm
– With 4Collars : 100 mm
• ความสูง (H) I-Beam : 150-400 mm
• Min.Radius of I-Beam (mm) : 1200
• น้ำหนัก Net weight : 19 kg
Dimensions (mm)

[table id=601 /]
| ►To any beam width : Elephant adjustable trolleys are adjustable to any by beam width, in three stages, simply by increasing or decreasing the number of the adjusting collars. |
| ►For both I-beam and H-beam : Wheels of the trolley fit both i-beam and H-beam. |
| ►High quality closed bearings : High quality closed bearings employed in the trolley provide smooth wheel traveling. |
| น้ำหนัก | 19.45 kg |
|---|
