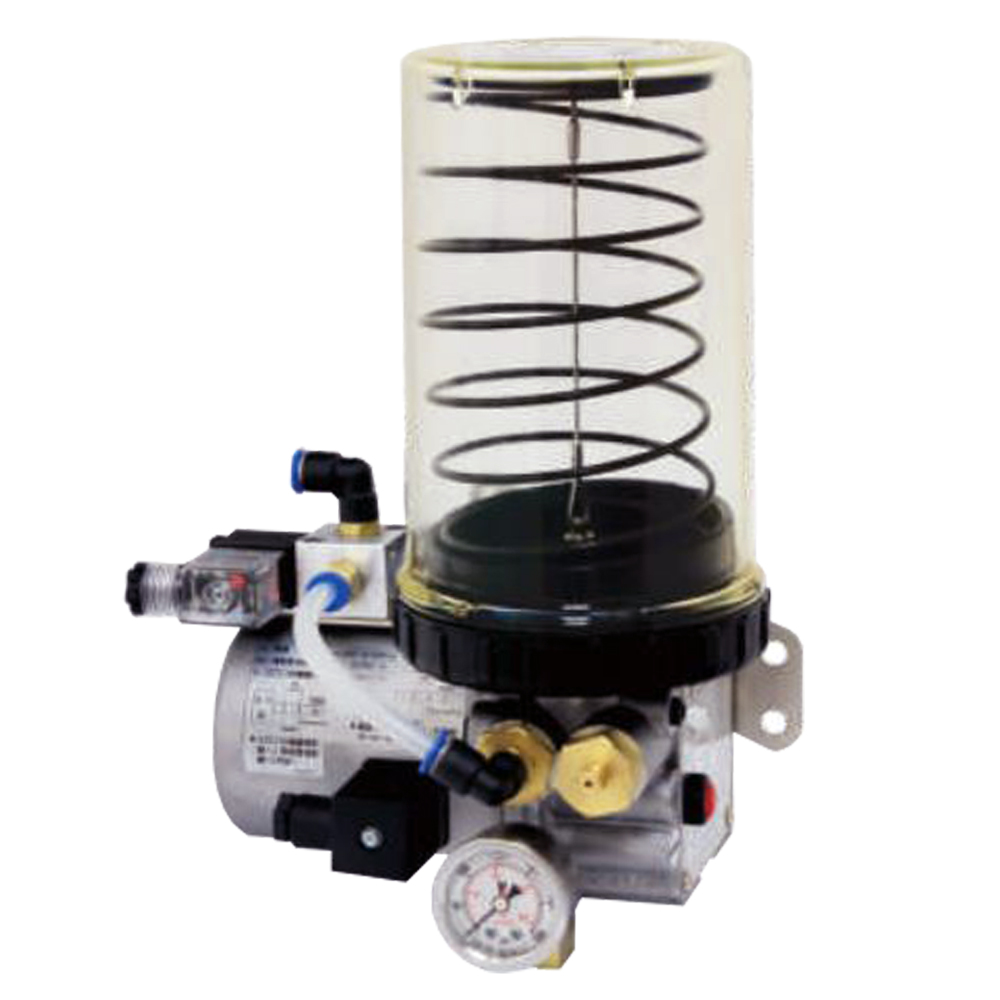

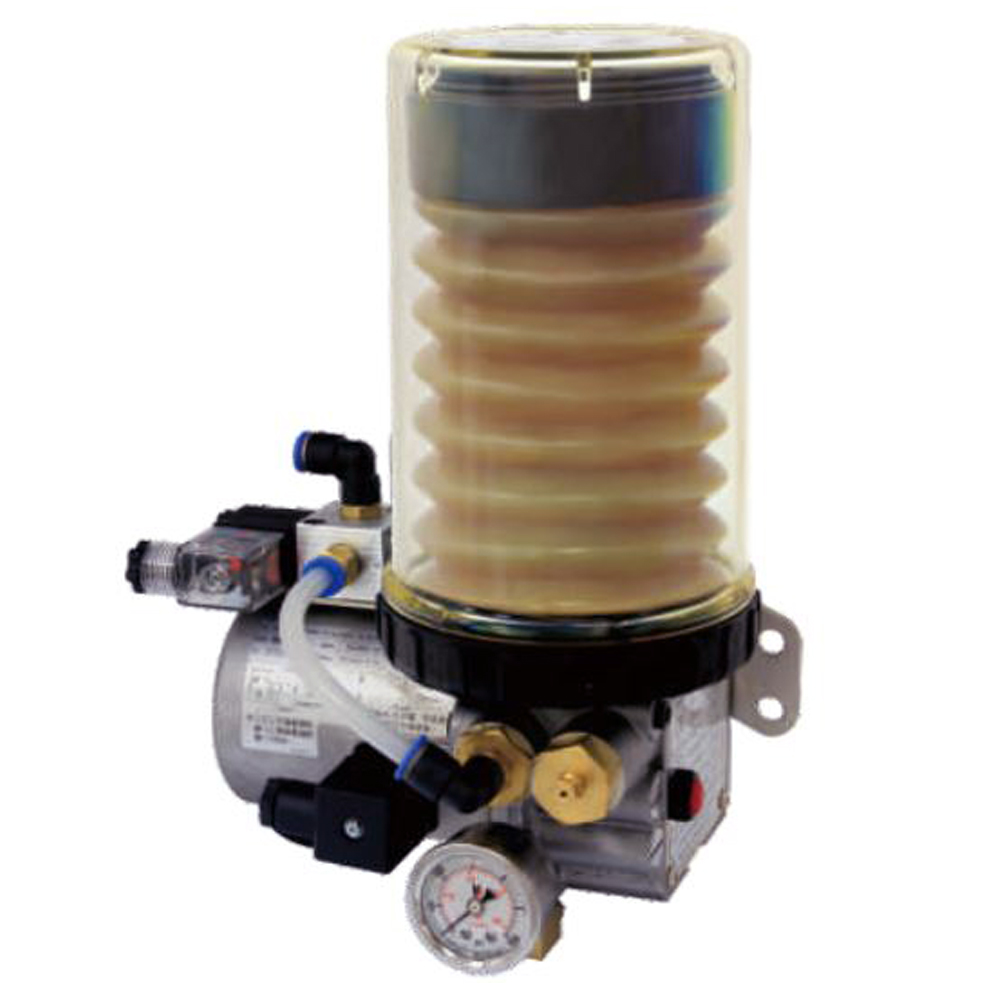

KGBP-07 ปั้มจ่ายจารบี ประเภทแรงดัน ระบบ PLC ถัง 700 CC 220V

• KGB และ KGBP เหมาะสำหรับจาระบี NLGI เกรด 000, 00 และ 0
• แนะนำให้ใช้ปืนอัดจาระบีสำหรับเติมจากทางเข้าของจาระบี สามารถหลีกเลี่ยงอากาศหรือสิ่งสกปรกที่ตกลงถัง
• KGB และ KGBP สามารถใช้งานได้โดย PLC ระบบลดแรงดันเป็นแบบนิวเมติกและคำแนะนำสำหรับช่วงความดันลมคือ 4.5 ~ 8 kg. ต้องทำงานกับข้อต่อจ่ายจารบี รุ่น CEB ซึ่งออกแบบเป็นทางออกเอกเทศที่มีปริมาณการปล่อยคงที่ว่าแต่ละจุดหล่อลื่นมีปริมาณสารหล่อลื่นเท่ากัน มีตัวเลือกปริมาณการปล่อยที่แตกต่างกันเช่น 0.03, 0.06, 0.10, 0.16, 0.20, 0.30, 0.40, 0.50cc / จังหวะตามคำสั่งซื้อ จาระบีจะถูกป้อนในช่วงเวลาการทำงานของเครื่องหล่อลื่นและปริมาณการป้อนจาระบีจะได้รับการแก้ไข
• สามารถเพิ่มสวิตช์ความดันเป็นตัวเลือกสำหรับการตรวจสอบว่าท่อทำงานตามปกติหรือไม่ การตั้งค่ามาตรฐานอยู่ที่ 60 บาร์และข้อกำหนดมาตรฐานคือการติดต่อ NC (ปิดปกติ) ซึ่งหมายความว่าหากความดันไม่ถึงการตั้งค่าเริ่มต้นก็จะส่งสัญญาณเตือน NO (เปิดตามปกติ) ตามคำขอ
• Magnet Level Switch เป็นอุปกรณ์เสริมที่สามารถเพิ่มได้เมื่อมีการสั่งเพิ่ม ส่งสัญญาณต่อเนื่องโดยอัตโนมัติเมื่อระดับไขมันต่ำกว่าระดับต่ำสุด
• สำหรับการใช้ครั้งแรกให้กดปุ่มฟีด (ปุ่ม F) เล็กน้อยเพื่อให้จารบีปล่อยทันที ปุ่ม F สามารถใช้เป็นตัวขับจารบีได้ด้วยตนเองไม่เกิน 3 นาที
• เมื่ออุณหภูมิมอเตอร์ถึง 100 ℃ เซ็นเซอร์จะทำงานเพื่อหยุดมอเตอร์ทำงานต่อไปประมาณ 5 นาที
• มีมาตรวัดความดันที่ผู้ปฏิบัติงานสามารถตรวจสอบแรงดันได้ง่าย
• สินค้าคุณภาพ จากใต้หวัน

รหัสสินค้า: KGBP-07-C-3-PC หมวดหมู่: ป้ายกำกับ: Brands:

Product Description

KGBP-07 ปั้มจ่ายจารบี ประเภทแรงดัน ระบบ PLC ถัง 700 CC 220V

Code : KGBP-07-C-3-PC

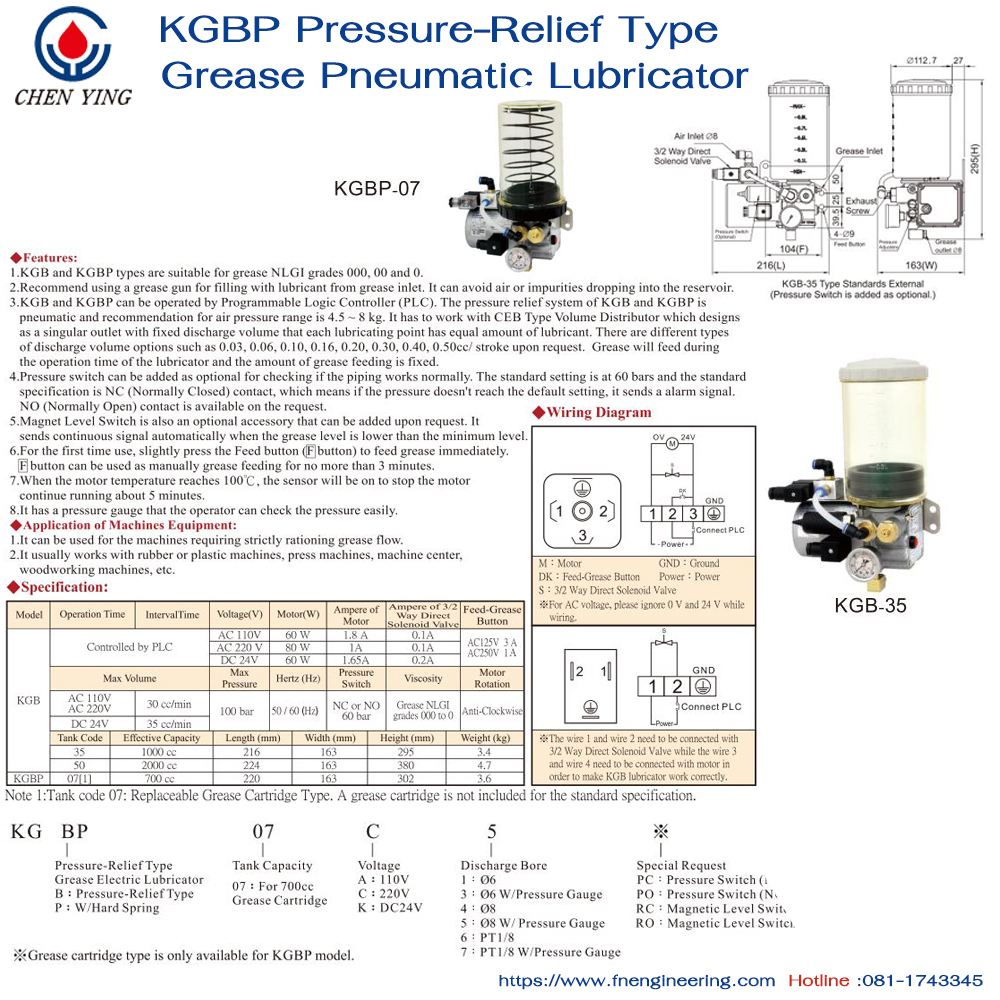

• KGBP Pressure-Relief Type Grease Pneumatic Lubricator

Specification รายละเอียด

• เวลาในการทำงาน Operation Time : Controlled PLC
• ช่วงเวลา Interval Time : Controlled PLC
• มอเตอร์ Motor : 80W
• Voltage : 220V.
• Ampere : 1.A./50Hz
• ปริมาณสูงสุด Max Volume  : 30 cc/min
• Pressure Switch: NC or NO  60 bar
• แรงดัน Max Pressure : 100 Bar
• Motor Rotation : Anti-Clockwise
• ท่อ Discharge Bore :  Ø 6 mm. W/Pressure Gauge
• ความหนืด Viscosity : Grease NLGI  000,00,0
• วัสดุถัง Tank material : เรซิ่น
• ความจุ Capacity Liters : 700 CC
• ความยาว Length (mm) : 220
• กว้าง Width (mm) : 163
• สูง Height (mm) : 302
• น้ำหนัก Weight : 3.6 kg

NOTE : ต้องการไฟ 110V,DC24V ติดต่อพนักงานขาย

Download PDF

Features:
• KGB and KGBP types are suitable for grease NLGI grades 000, 00 and 0.
• Recommend using a grease gun for filling with lubricant from grease inlet. It can avoid air or impurities dropping into the reservoir.
• KGB and KGBP can be operated by Programmable Logic Controller (PLC). The pressure relief system of KGB and KGBP is pneumatic and recommendation for air pressure range is 4.5 ~ 8 kg. It has to work with CEB Type Volume Distributor which designs as a singular outlet with fixed discharge volume that each lubricating point has equal amount of lubricant. There are different types of discharge volume options such as 0.03, 0.06, 0.10, 0.16, 0.20, 0.30, 0.40, 0.50cc/ stroke upon request. Grease will feed during the operation time of the lubricator and the amount of grease feeding is fixed.
• Pressure switch can be added as optional for checking if the piping works normally. The standard setting is at 60 bars and the standard specification is NC (Normally Closed) contact, which means if the pressure doesn't reach the default setting, it sends a alarm signal. NO (Normally Open) contact is available on the request.
• Magnet Level Switch is also an optional accessory that can be added upon request. It sends continuous signal automatically when the grease level is lower than the minimum level.
• For the first time use, slightly press the Feed button (F button) to feed grease immediately. F button can be used as manually grease feeding for no more than 3 minutes.
• When the motor temperature reaches 100℃, the sensor will be on to stop the motor continue running about 5 minutes.
• It has a pressure gauge that the operator can check the pressure easily.

Application of Machines Equipment:

• It can be used for the machines requiring strictly rationing grease flow.
• It usually works with rubber or plastic machines, press machines, machine centers, woodworking machines, etc.
น้ำหนัก 3.60 kg
