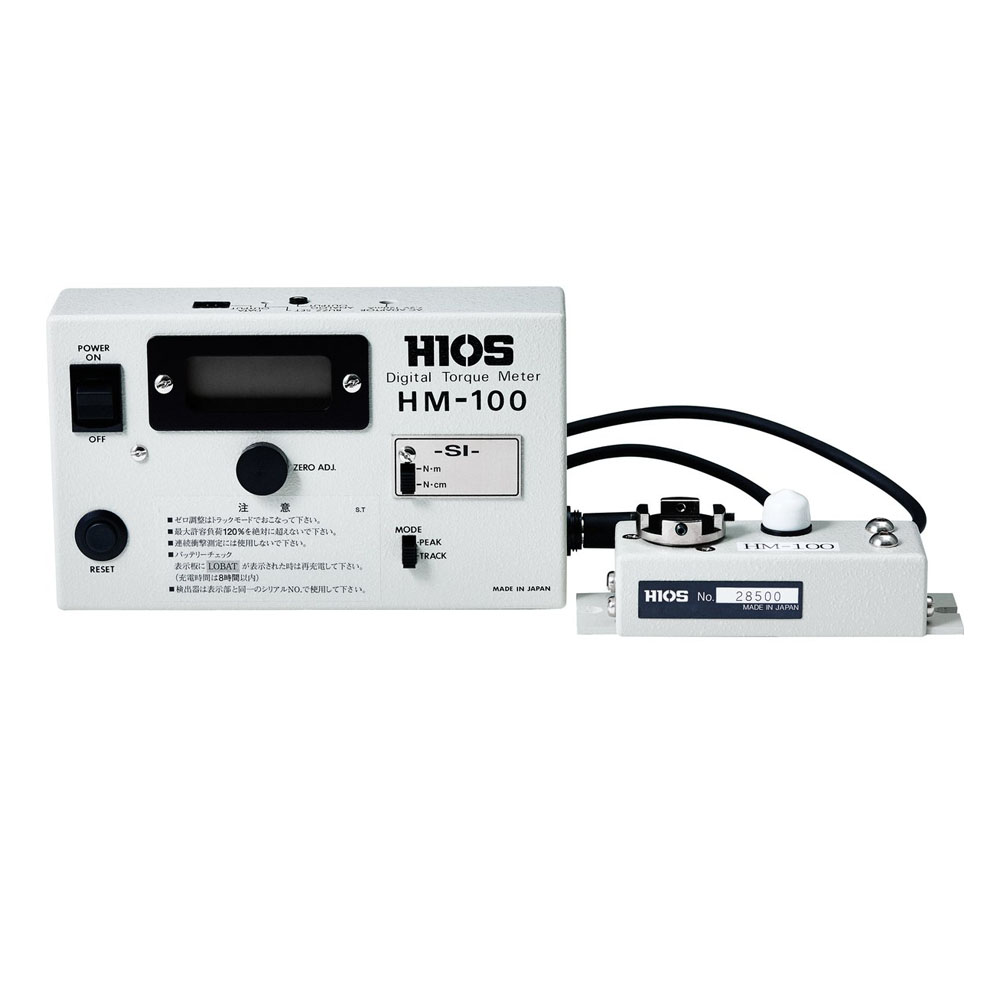

HM-100 เครื่องวัดแรงบิดดิจิตอล ช่วงการวัด 0.15-10 N.M

• ใช้สำหรับควบคุมแรงบิดของไขควงสำหรับเครื่องประกอบอัตโนมัติ
• สามารถนำเข้าข้อมูลที่วัดได้ไปยังคอมพิวเตอร์
• สามารถจัดเก็บรายการข้อมูลได้สูงสุด 100 รายการในหน่วยความจำและควบคุมได้ (ใช้ได้กับ HP และ HDP เท่านั้น)
• ด้วยเครื่องวัดแรงบิดหนึ่งหน่วย สามารถวัดค่าแรงบิดสูงสุด ต่ำสุด และ ave ได้ (ใช้ได้กับ HP และ HDP เท่านั้น)
• สามารถวัดแรงบิดได้ทั้งตามเข็มนาฬิกาหรือทวนเข็มนาฬิกา
• ตามข้อกำหนดมาตรฐาน เอาต์พุตข้อมูลและเอาต์พุตแบบอะนาล็อกจะพร้อมใช้งาน
• เรามีบริการสอบเทียบและบำรุงรักษา
• “รายงานการตรวจสอบ” แนบมากับทอร์คมิเตอร์ทั้งหมด
• สินค้านำเข้าจากญี่ปุ่น

รหัสสินค้า: HM-100 หมวดหมู่: ป้ายกำกับ: Brands:

Product Description

HM-100 เครื่องวัดแรงบิดดิจิตอล ช่วงการวัด 0.15-10 N.M

Model : HM,-100

• TORQUE METER
• HM SERIES ใช้สำหรับควบคุมแรงบิดของไขควงสำหรับเครื่องประกอบอัตโนมัติ

Specification รายละเอียด

• Power measuing Range ช่วงการวัดกำลัง : 0.15 – 10 N・ m
• Power measuing Range ช่วงการวัดกำลัง : 1.5 – 90.0 lbf・in
• Power measuing Range ช่วงการวัดกำลัง : 1.55 – 100kgf・cm
• Accuracy ความแม่นยำ : Within ±0.5% (F.S.)
• Measuring modes โหมดการวัด : TRACK and PEAK
• ขนาดเส้นผ่าศูนย์กลาง (มม. ) : 165(W) x 95(D) x 55 (H) mm.
• Battery pack (charging time) : 1.2V NiMH  (within 8 hours)
• Continuous running time on a full charge : 30 Hours
• Battery life : About. 300 charges
• Exclusive battery charger : Input:AC 220-240V  Output:DC 7.2V  120MA
Weight น้ำหนัก  : 1.0 kg.



Use for torque control of screwdrivers for automatic assembly machines
• Measured data can be imported to a computer.
• Up to 100 data items can be stored in the memory and controlled (applicable to HP and HDP only).
• With one unit of Torque Meter, max, min and ave torque values can be measured (applicable to HP and HDP only).
• New product, HP-1 is ideal for measuring 10N・cm or smaller torque.
• Torque for both clockwise or counterclockwise can be measured.
• As a standard specificataon, data output and analogue output are available.
• We offer calibration and maintenance services.
• “Inspection Report” is attached to all the Torque Meters.
น้ำหนัก 1.0 kg
