ดอกนำศูนย์สีทอง ร่องเลื้อย CE-S-V 60º

• มาตรฐาน JIS
• Optimum coating suitable for the cutting condition
• สินค้าราคาต่อ / 1ชิ้น
• 10 pcs / Box

รหัสสินค้า: CE-S-V-03060 หมวดหมู่:

Product Description

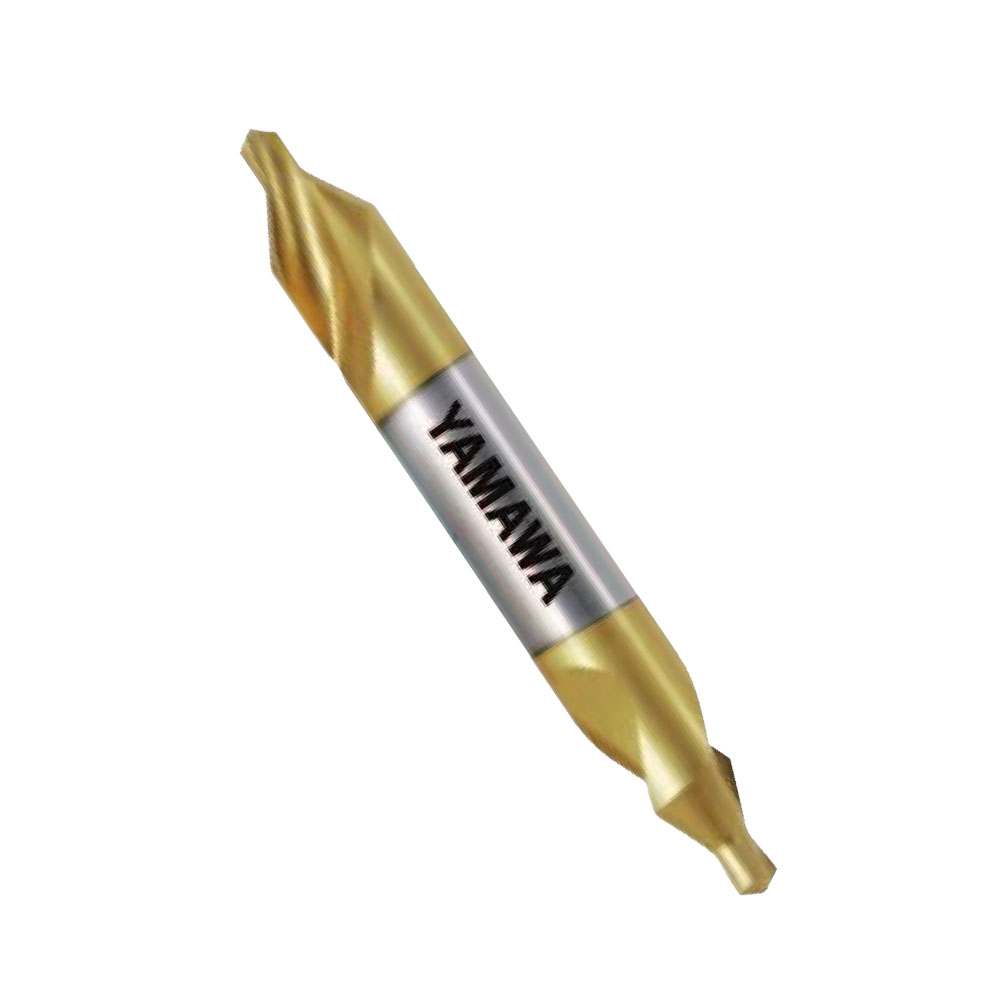

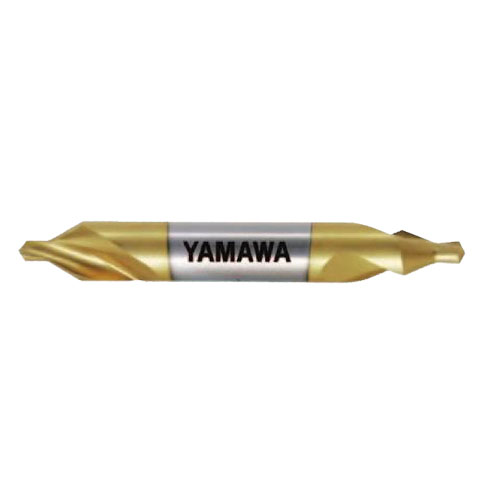

ดอกนำศูนย์สีทอง ร่องเลื้อย High Helix Center Drill-Type A 60º

Code : CE-S-V-03060

* TYPE A, 60
* Material : HSS+Coated

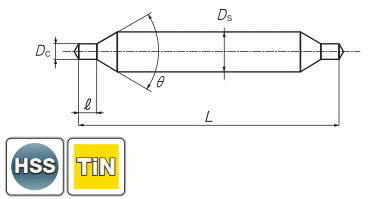

Dimension (mm)

Size
Dc x o x Ds
Model
No.
Ds
(mm)
L
(mm)
i
(mm)
Type
1x60ºx4VCE1.043511
1.5x60ºx5VCE1.55401.51
2x60ºx6VCE2.064521
2.5x60ºx7.7VCE2.57.7502.51
3x60ºx7.7VCE3.07.75531
4x60ºx10VCE4.010654.51
5x60ºx11VCE5.011785.51
6x60ºx18VCE6.018906.51

NOTE : รายการที่ไม่มีขนาด หรือราคา โปรดติดต่อพนักงานขาย หรือ ขอใบเสนอราคา

Download PDF



* TYPE A, 60
* Optimum coating suitable for the cutting condition
