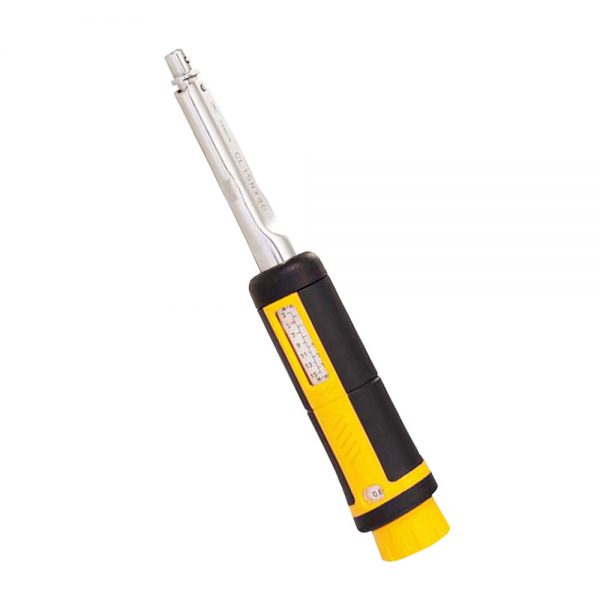

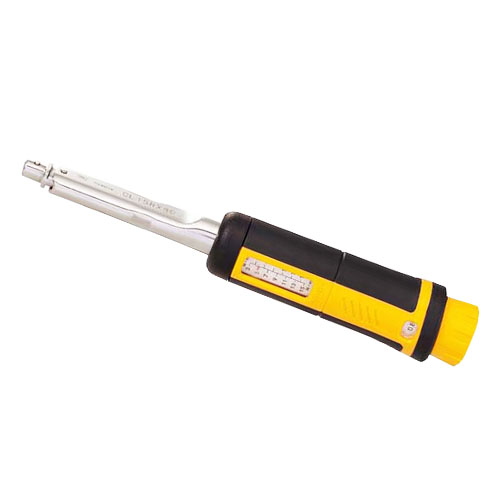

CL Adjustable Click Type Torque Wrench Torque range 5-25 N*m
• Interchangeable head applicable for multi-purpose use.
• By exchanging heads, the wrench services a variety of applications from open end spanner, ring, ratchet, hex heads, and more, with a single wrench.
• A clear “click” sound signals tightening completion upon reaching the set torque.
Product Description
CL Adjustable Click Type Torque Wrench,Torque range 5-25 N*m
Model : CL25NX10D
Features
* Interchangeable head applicable for multi-purpose use.
* Interchangeable head version of QL model.
* By exchanging heads, the wrench services a variety of applications from open end spanner, ring, ratchet, hex heads, and more, with a single wrench.
* A clear “click” sound signals tightening completion upon reaching the set torque.
* Torque setting is easy to adjust by knob and scale.
* With CLE550N2 to CLE1200N2 models, the built-in torque adjustment handle makes torque changes easy even without a special-purpose tool.
* CL2N to CL25N5 models have a resin grips with large contrasting scale.
DIMENSION (mm)
Accuracy ±3%
| Effective Length L | Overall Length L’ | d3 | m | n | d | D |
|---|---|---|---|---|---|---|
| 187 | 216 | 10 | 19 | 9.2 | 15 | 37 |
Specificatin ข้อมูลจำเพาะ
• ช่วงแรงบิด Torque Range : 5～25 N • m
• Grad : 0.2
• Applicable Bolt
• Common steel : M8
• High tension : (M7)
• Max. hand force [N] : 133.7
• น้ำหนัก Weigh : 0.30 kg
| * Interchangeable head applicable for multi-purpose use. |
| * Interchangeable head version of QL model. |
| * By exchanging heads, the wrench services a variety of applications from open end spanner, ring, ratchet, hex heads, and more, with a single wrench. |
| * A clear "click" sound signals tightening completion upon reaching the set torque. |
| * Torque setting is easy to adjust by knob and scale. |
| * With CLE550N2 to CLE1200N2 models, the built-in torque adjustment handle makes torque changes easy even without a special-purpose tool. |
| * CL2N to CL25N5 models have a resin grips with large contrasting scale. |
| * CL50N to CL280N models have a resin grip, while CL420N has a knurled metal handle. |
| * CLE550N2 to CLE1200N2 models have an extension handle that separates from the body for compact storage. |
| * CL25N5x10D, CL50Nx12, CL50Nx15D, CL100Nx15D and CL140Nx15D adjustable torque wrenches can be used with interchangeable adjustable heads (AH) (monkey wrench type). |
| * Applicable for international use including the EU region. Compliant with calibration procedures of ISO 6789 Type II Class A. |
| น้ำหนัก | 0.30 g |
|---|
