VHO-5 ปากกาจับชิ้นงาน ระบบไฮดรอลิค 5″

• Rigid material-vise body of ductile iron FCD 60JIS(equal to GGG60) with 60kgs/m㎡ or 80,000 psi tensile strength.
• Vise bed flame hardened to HRC 45 and up, takes up wear and maintain accuracy for long.
• For multiple use plural vises are available on tolerance of 0.01mm in the height of vise bed and in alignment of the clamping surface of the vise jaw at extra cost.
• Mechanicl/hydraulic spindle without original clutch mechanism.
• Sown thrust “Semi-sphere Segment” mechanism-eliminates jaw lifting and work flitting.
• All surface ground.

รหัสสินค้า: VHO-5 หมวดหมู่: Brands:

31,000.00฿ 18,600.00฿ ราคายังไม่รวมภาษี

Compare

Product Description

VHO-5 ปากกาจับชิ้นงาน ระบบไฮดรอลิค 5″

Code : VHO-5

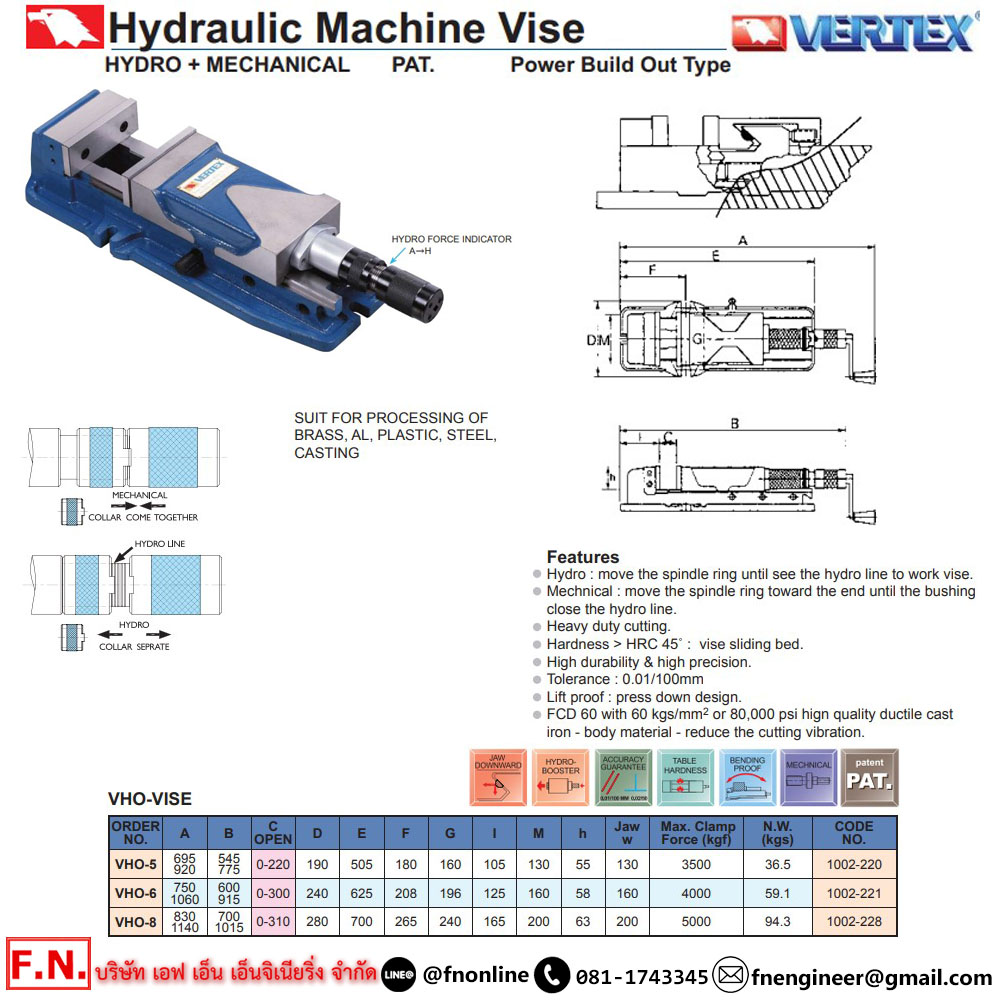

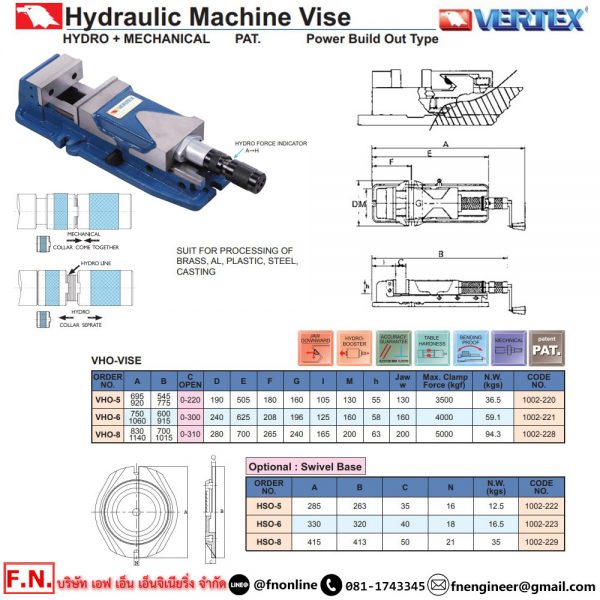

Hydraulic Machine Vise,Power Build out type

Dimension

ABCDEFGHIJ
Open
KMax Clamp
Forc (kgs)
Weight
kg
695
920
570
795
1301905051801602501050-220260300041

Download PDF

►  Rigid material-vise body of ductile iron FCD 60JIS(equal to GGG60) with 60kgs/m㎡ or 80,000 psi tensile strength.
► Vise bed flame hardened to HRC 45 and up, takes up wear and maintain accuracy for long.
►  For multiple use plural vises are available on tolerance of 0.01mm in the height of vise bed and in alignment of the clamping surface of the vise jaw at extra cost.
► Mechanicl/hydraulic spindle without original clutch mechanism.
► Sown thrust “Semi-sphere Segment” mechanism-eliminates jaw lifting and work flitting.
► All surface ground.
น้ำหนัก 36.50 kg
