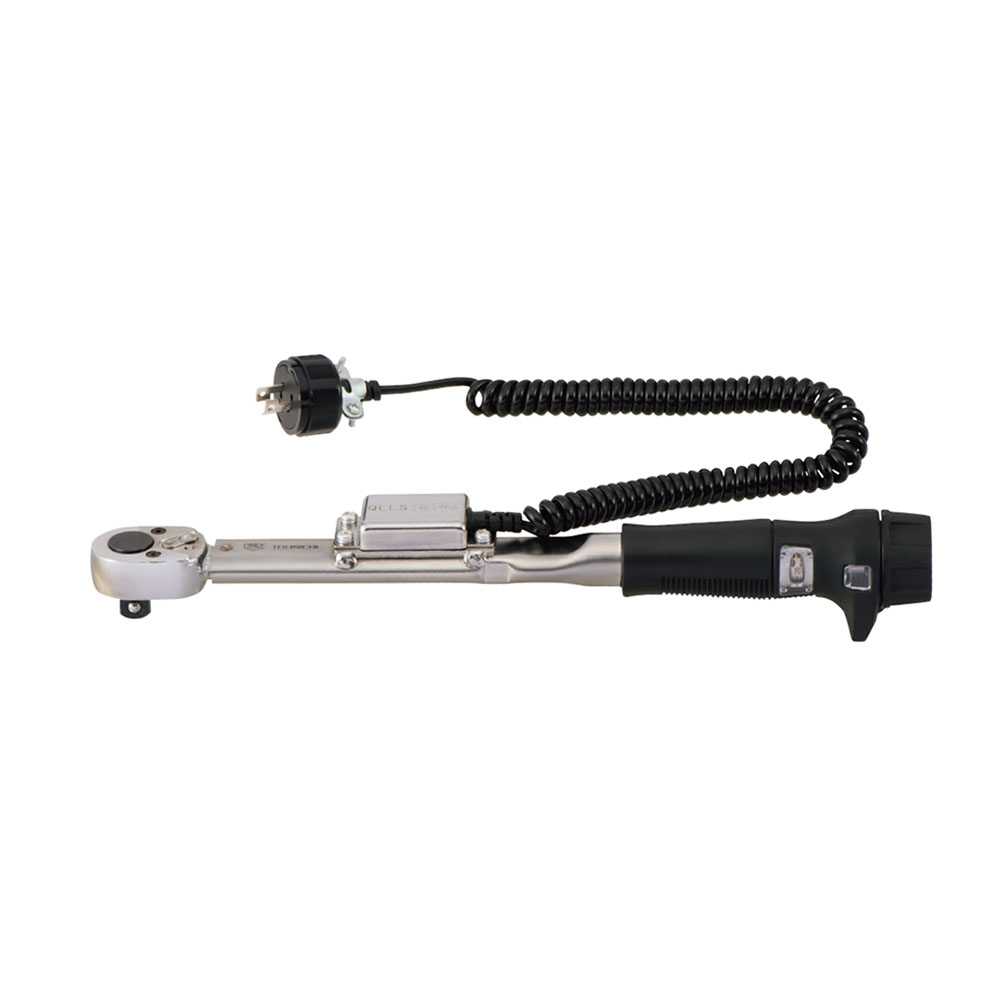

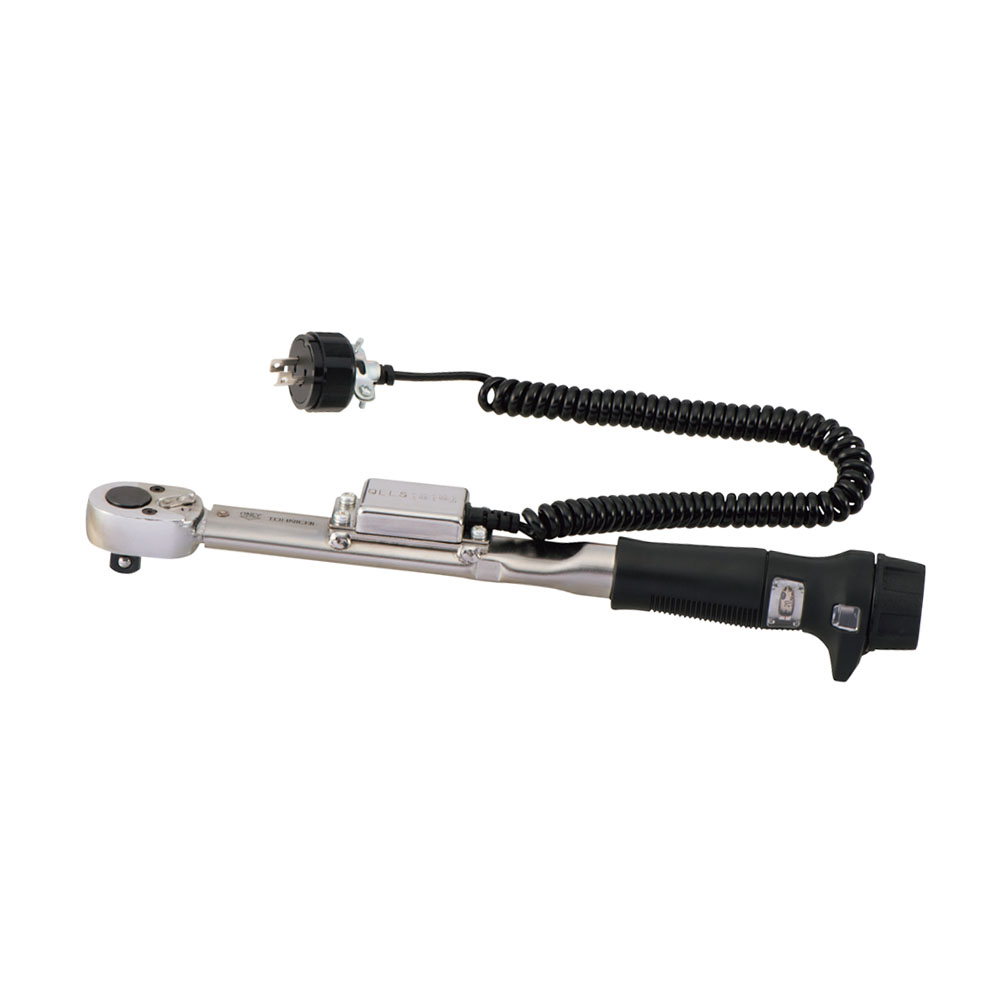

TOHNICHI PQLLS50N บล๊อกด้ามฟรีวัดแรงบิด ล็อคล่วงหน้า พร้อมลิมิตสวิตซ์ 3/8″SQ.Drive ช่วงแรงบิด 10∼50 N•m
• ประแจวัดแรงบิดพร้อมสวิตช์จำกัดแบบมีสาย
• เมื่อถึงแรงบิดที่ตั้งไว้ สวิตช์จะทำงาน และในเวลาเดียวกัน สัญญาณสัมผัสจะส่งออกจากสวิตช์จำกัด
• คุณสามารถสร้างระบบป้องกันข้อผิดพลาดได้อย่างง่ายดายโดยใช้ร่วมกับเครื่องตรวจสอบจำนวนที่จำหน่ายแยกต่างหาก (CNA-4mk3)
• สัญญาณจากสวิตช์จำกัดจะป้อนเข้าสู่ PLC หรืออุปกรณ์ที่คล้ายกัน และระบบรับประกันการขันจะถูกสร้างขึ้นโดยประสานกับสาย
• สาย LS ใช้สายที่ม้วนงอซึ่งมีความทนทานสูง
• คุณยังสามารถแปลงประแจแรงบิด LS ปัจจุบันของคุณให้เป็นประแจแรงบิดป้องกันข้อผิดพลาดแบบไร้สายได้โดยการเปลี่ยนชิ้นส่วน LS ด้วยเครื่องส่งสัญญาณ T-FHLS โปรดติดต่อฝ่ายขายเพื่อดูรายละเอียดเพิ่มเติม
• รุ่น QLLS/CLLS/PQLLS/PCLLS/TiQLLS/YCLLS จะเป็นไปตามมาตรฐาน ISO6789:2017
Product Description
TOHNICHI PQLLS50N บล๊อกด้ามฟรีวัดแรงบิด ล็อคล่วงหน้า พร้อมลิมิตสวิตซ์ 3/8″SQ.Drive ช่วงแรงบิด 10∼50 N•m
Model : PQLLS50N
• Torque wrench with wired limit switch.
• When the set torque is reached, the toggle operates and at the same time a contact signal is output from the limit switch.
• By combining with the separately sold count checker (CNA-4mk3), you can easily create a mistake-proofing system.
• The signal from the limit switch is input to a PLC or similar device, and a tightening assurance system is created by interlocking with the line.
• The LS cord uses a curled cord that is highly durable.
• CLLS, PCLLS, and YCLLS are interchangeable head torque wrenches. • You can use Tohnichi’s interchangeable heads, which boast the world’s largest selection. This allows you to perform optimal work.
• You can also convert your current LS torque wrench into a wireless error-proofing torque wrench by replacing the LS part with a T-FHLS transmitter. Please contact us for details.
• The QLLS/CLLS/PQLLS/PCLLS/TiQLLS/YCLLS series will be compliant with ISO6789:2017 from January 2022, with the exception of some products.
Specificatin ข้อมูลจำเพาะ
• ช่วงแรงบิด Torque Range : 10∼50 N•m
• Grad : 0.5
• แกนสี่เหลี่ยม SQ. Drive : 3/8″ (9.53 mm)
• ความยาวรวม : 260 mm.
Applicable Bolt
• Common steel : M10
• High tension : M8
• Max. hand force [N] : 274
• น้ำหนัก Weigh : 0.57 kg
ข้อมูลเพิ่มเติม


น้ำหนัก | 0.57 kg |
---|
