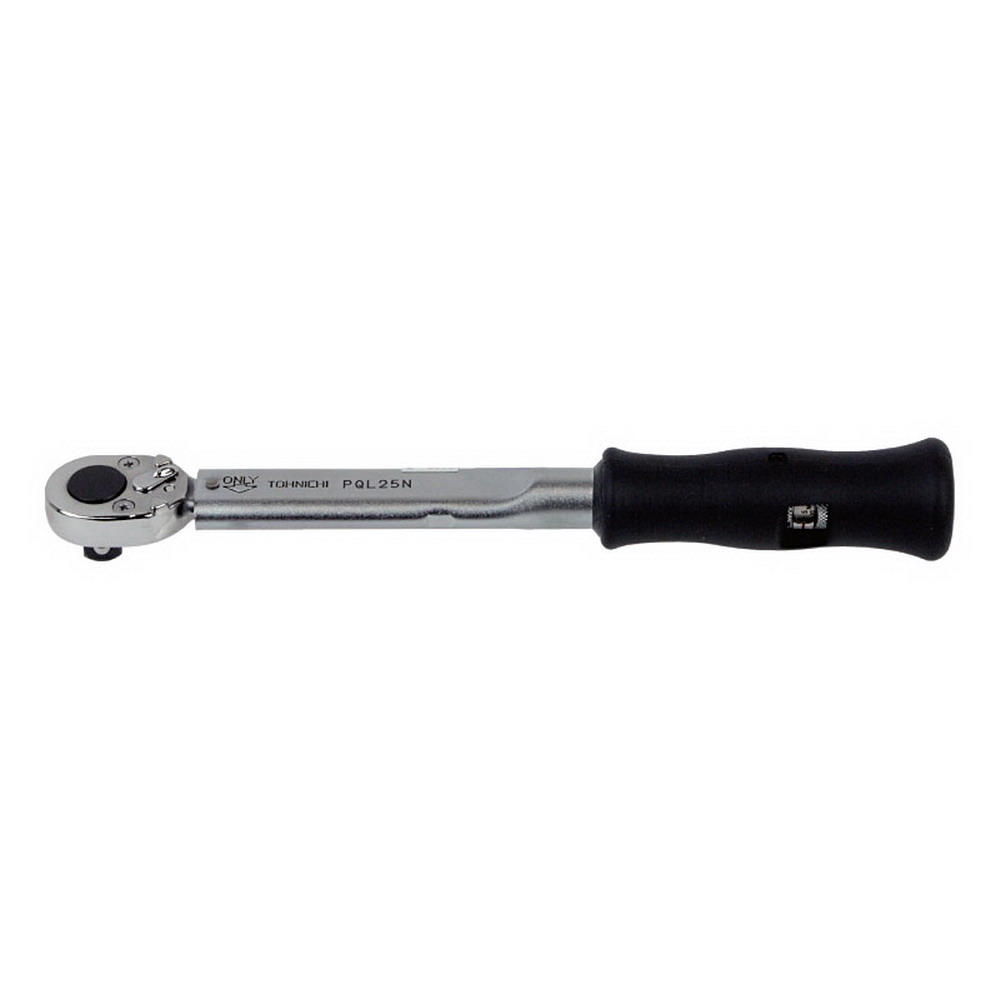

TOHNICHI PQL25N บล๊อกด้ามฟรีวัดแรงบิด แบบล็อคล่วงหน้า 3/8″SQ.Drive ช่วงแรงบิด 5∼25 N•m

Product Description

TOHNICHI PQL25N  บล๊อกด้ามฟรีวัดแรงบิด แบบล็อคล่วงหน้า 3/8″SQ.Drive ช่วงแรงบิด 5∼25 N•m

Model : PQL25N

• Pre-Lock Adjustable Torque Wrench.

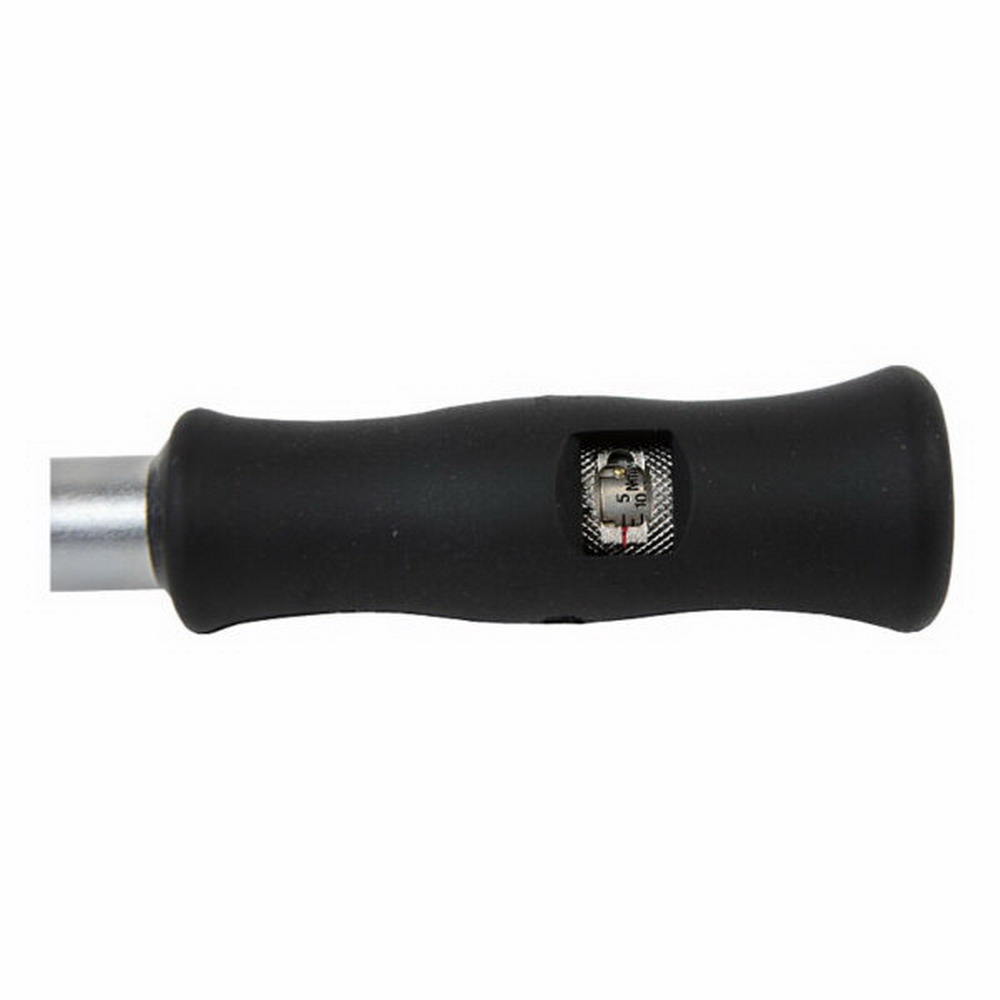

• The torque setting is changed by using a standard hex key to adjust the setting on the scale.
• This creates a more secure torque setting, in comparison to QL types which have a large knob that can easily change the torque setting.
• Suitable for mass production as single-purpose with graduation.
• Accuracy +/- 3% of indicated value
• A clear “Click” sound signals tightening completion upon reaching the set torque.
• The ratchet head has 24 teeth with a 15-degree operating range, allowing for use in space-limited working conditions.
• Applicable for international use including the EU region.
• Compliant with calibration procedures of ISO 6789 Type II Class A.
• Includes Factory Certificate of Calibration

Specificatin ข้อมูลจำเพาะ

• ช่วงแรงบิด Torque Range : 5∼25 N•m
• Grad : 0.25
• แกนสี่เหลี่ยม SQ. Drive : 3/8″ (9.53 mm)
• ความยาวรวม : 215 mm.

Applicable Bolt
• Common steel : M8
• High tension  : (M6) M7
• Max. hand force [N] : 154.3
• Optional Carrying Case : N/A
• น้ำหนัก Weigh : 0.25 kg
