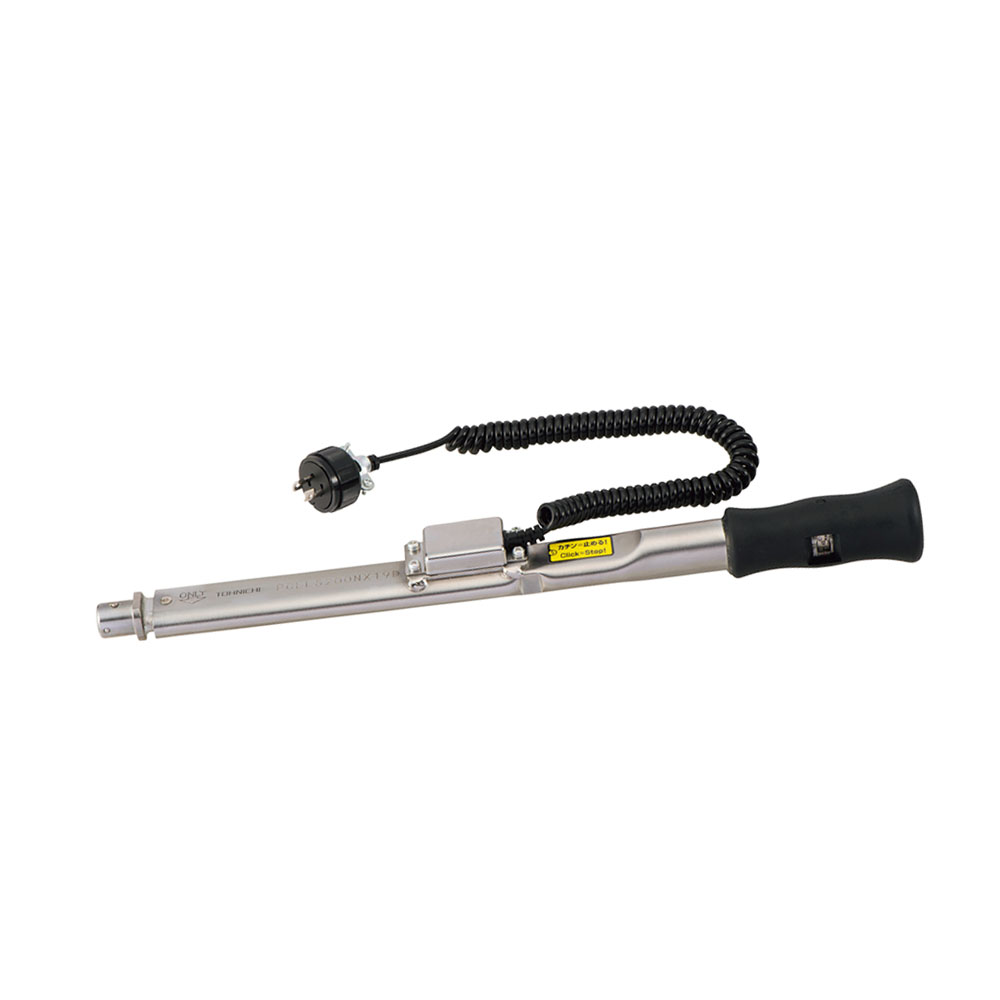

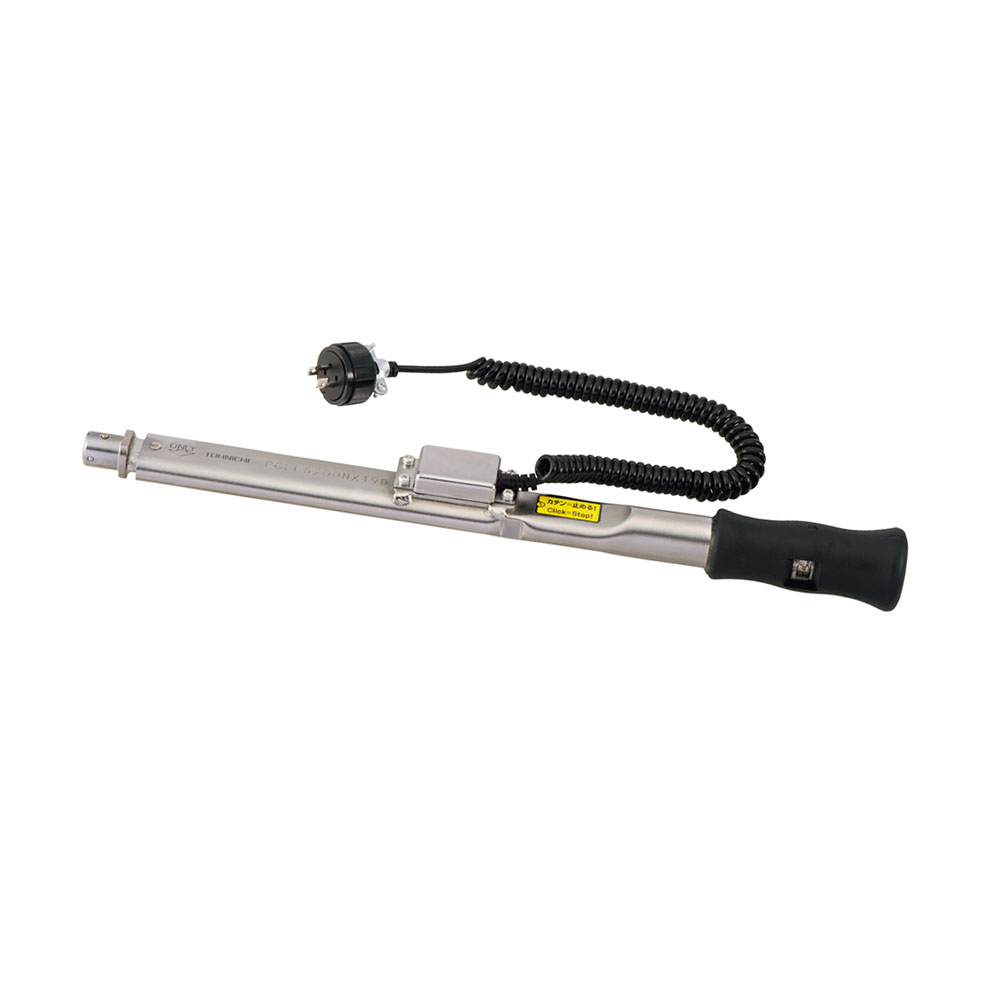

TOHNICHI PCLLS50NX12D ประแจแรงบิดเปลี่ยนหัวได้ พร้อมลิมิตสวิตซ์ 12D ช่วงแรงบิด 10∼50 N•m

Product Description

TOHNICHI PCLLS50NX12D ประแจแรงบิดเปลี่ยนหัวได้ พร้อมลิมิตสวิตซ์ 12D ช่วงแรงบิด 10∼50 N•m

Model : PCLLS50NX12D

Applications
• Poka-yoke (prevents forgetting to tighten).

Features
• Torque wrench with wired limit switch.
• When the set torque is reached, the toggle operates and at the same time a contact signal is output from the limit switch.
• By combining with the separately sold count checker (CNA-4mk3), you can easily create a mistake-proofing system.
• The signal from the limit switch is input to a PLC or similar device, and a tightening assurance system is created by interlocking with the line.
• The LS cord uses a curled cord that is highly durable.

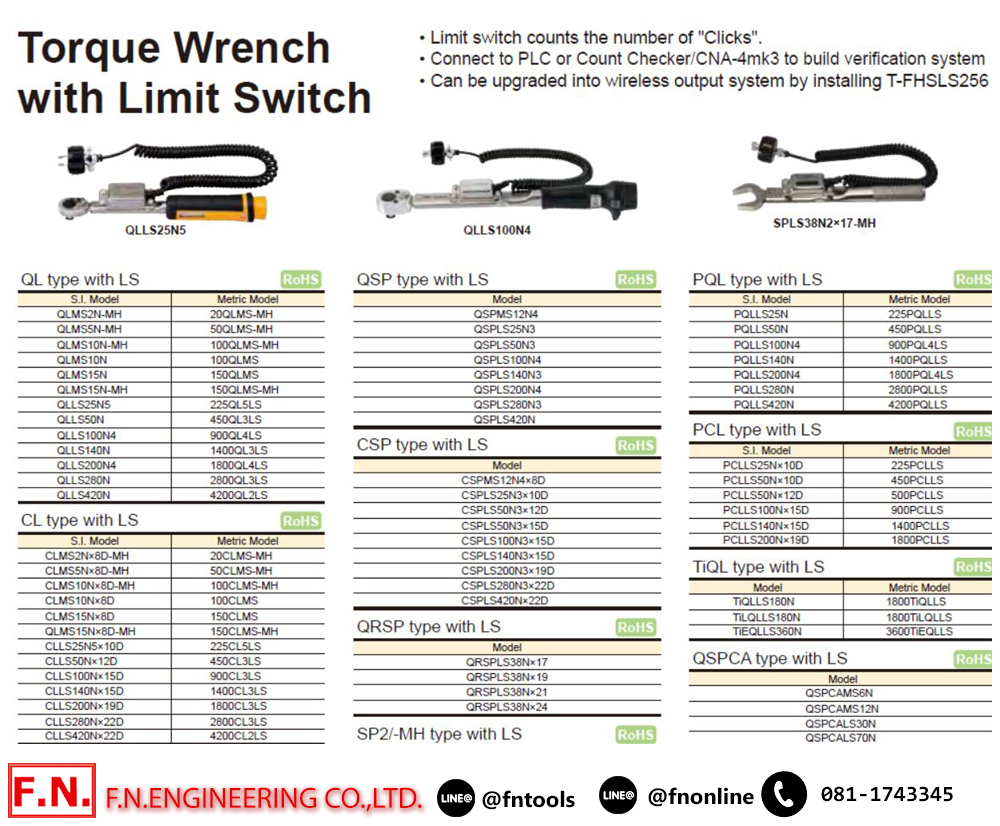

• CLLS, PCLLS, and YCLLS are interchangeable head torque wrenches.  You can use Tohnichi’s interchangeable heads, which boast the world’s largest selection. This allows you to perform optimal work.
• You can also convert your current LS torque wrench into a wireless error-proofing torque wrench by replacing the LS part with a T-FHLS transmitter. Please contact us for details.

Specificatin ข้อมูลจำเพาะ

• ช่วงแรงบิด Torque Range : 10∼50 N•m
• Grad : 0.5
• ขนาดปลายหัว : 12D
• ความยาวรวม : 220 mm.
• น้ำหนัก Weigh : 0.49 kg

Applicable Bolt
• Common steel : M10
• High tension  : (M8)
• Max. hand force [N] : 236
