ยันศูนย์เป็น รุ่น VLC

• Center shaft & main body are made of alloy steel under heating treatment to provide higher rigidity (HRC60° ± 2°) and satisfied wear-resistance.

รหัสสินค้า: VLC-212-214 หมวดหมู่:

Compare

Product Description

ยันศูนย์เป็น รุ่น VLC

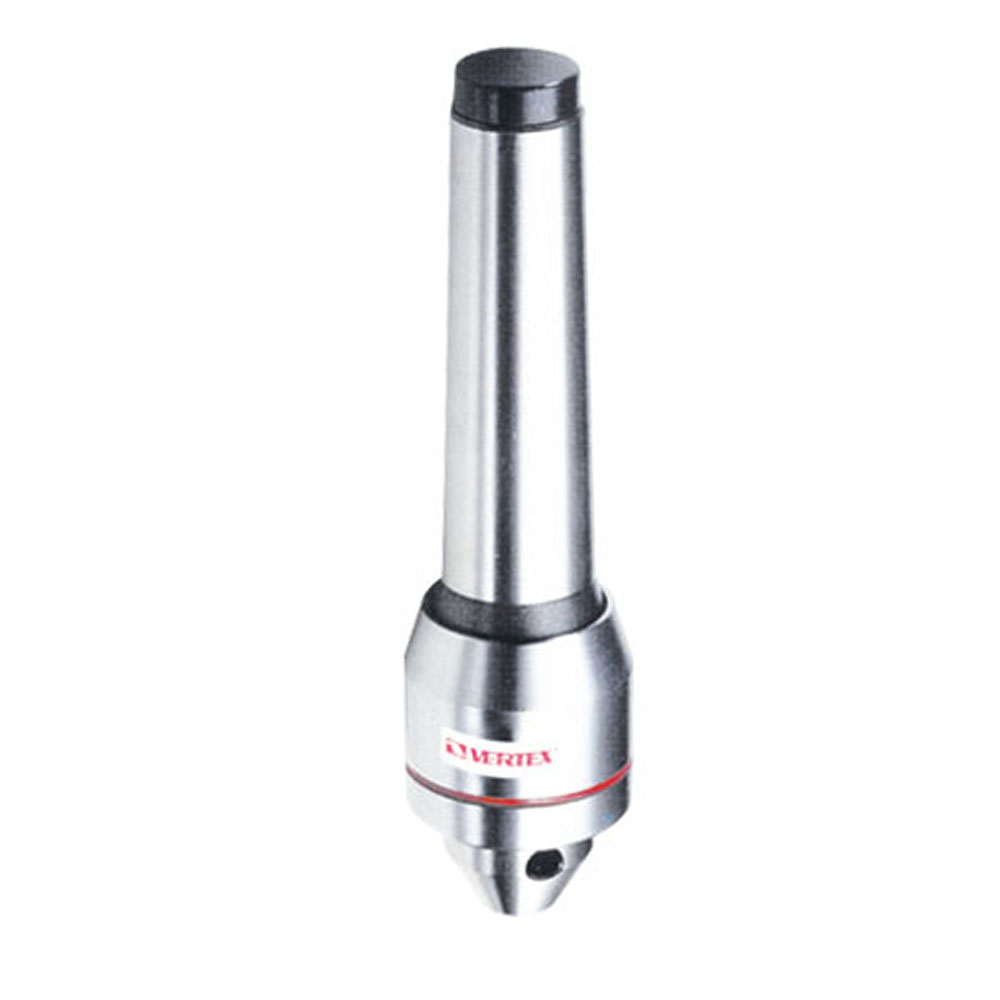

Live Lathe Center VLC Series

Code : VLC-212-214

Features คุณสมบัติ

* Center shaft & main body are made of alloy steel under heating treatment to provide higher rigidity (HRC60° ± 2°) and satisfied wear-resistance.
* Center is constituted by ball bearing assembly.
* Applicable to middle-speed & high-speed leathe with light load.

Specification

ORDER NO.TYPEABCDD1LAccuracyGross Weight
VLC-212MT2A28356932251320.0050.3 kgs
VLC-213MT3A36448641351660.0050.9 kgs
VLC-214MT4A415110847402000.0051.5 kgs
VLC-215MT5A547213665522620.0053.8 kgs
VLC-213BMT3B46448641251760.0050.9 kgs
VLC-214BMT4B555110847322140.0051.5 kgs

Download PDF



* Center shaft & main body are made of alloy steel under heating treatment to provide higher rigidity (HRC60° ± 2°) and satisfied wear-resistance.
* Center is constituted by ball bearing assembly.
* Applicable to middle-speed & high-speed leathe with light load.
