CLA-6 ปั้มจ่ายน้ำมันแบบมือโยก 350 CC

• CLA-6 ปั้มจ่ายน้ำมัน แบบมือโยก ขนาด 350 CC
• ต้นทุนต่ำการปฏิบัติใช้จริงสูง สามารถใช้ในเครื่องจักรที่หลากหลาย
• ใช้งานง่ายด้วยการกดที่จับลงเพื่อป้อนน้ำมัน
• ปริมาณการปล่อยขนาดเล็กและง่ายต่อการติดตั้ง
• อุปกรณ์นี้ติดตั้งตัวหยุดแบบย้อนกลับเพื่อป้องกันการไหลย้อนกลับของน้ำมัน
• มีช่องจ่ายน้ำมันทางด้านซ้ายหรือด้านขวาของยูนิต มีจุดจำหน่ายสองจุด (ด้านซ้ายและด้านขวา)

รหัสสินค้า: CLA-6 หมวดหมู่: ป้ายกำกับ: Brands:
chen ying brand

2,550.00฿ 1,912.50฿ ราคายังไม่รวมภาษี

มีสินค้าอยู่ 10

฿
Compare

Product Description

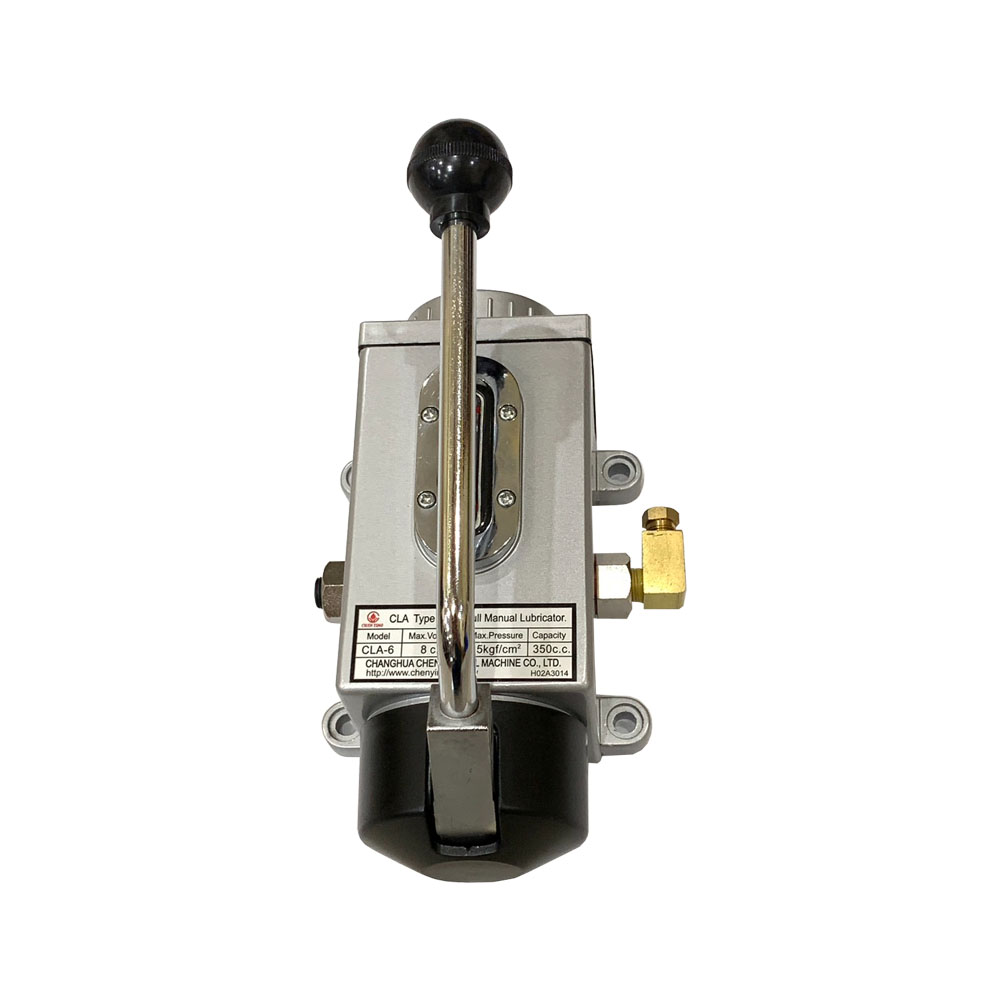

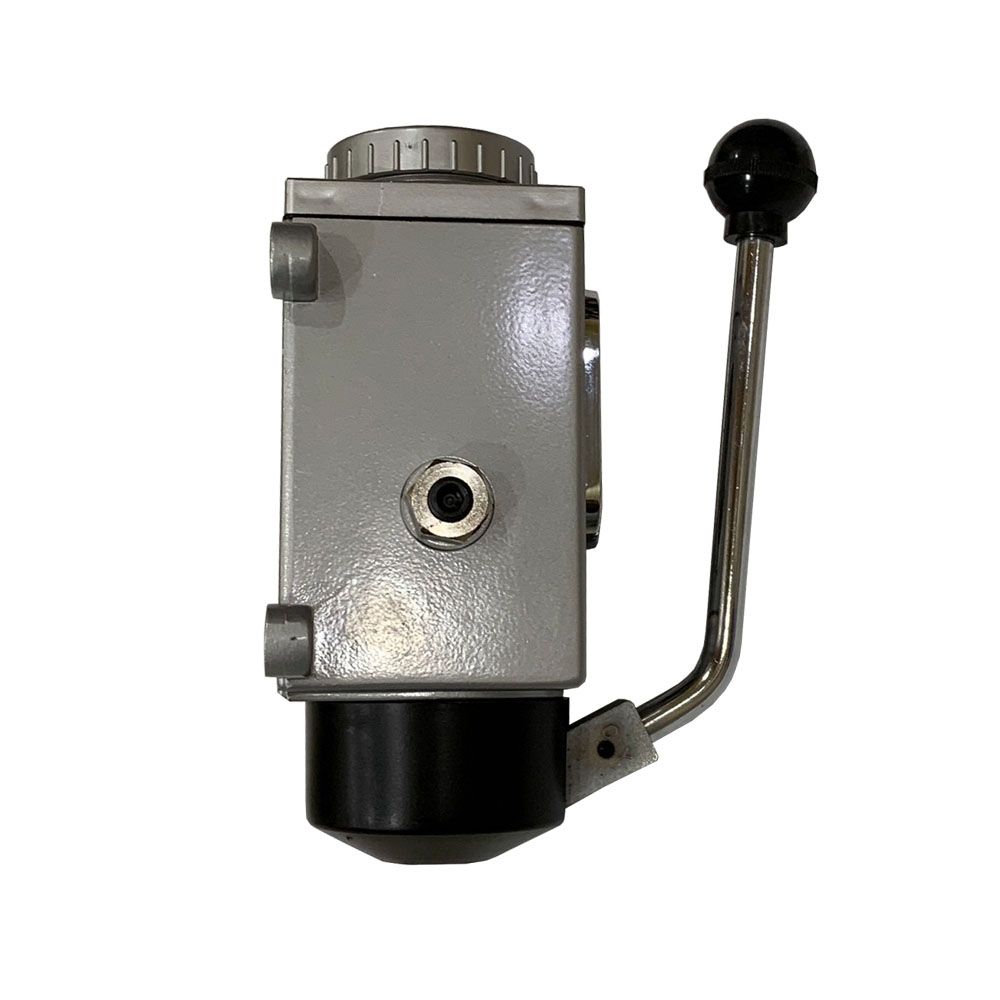

CLA-6 ปั้มจ่ายน้ำมันแบบมือโยก 350 CC

Code : CLA-6

• CLA Type Hand-Pull Manual Lubricators

Dimension

Specification รายละเอียด

• Capacity ขนาดกระบอกจุ : 350 cc
• Max Volume ปริมาณสูงสุด : 8 cc / Stroke
• Max Pressure แรงดันสูงสุด : 15 kgf / cm²
• Discharge Bore ท่อ : Ø4 mm or Ø6 mm
• Oil Viscosity ความหนืดของน้ำมัน : 32-68cST @40oC
• Fixed Hole Distance (mm): 85 , 85  mm
• Length : 112 mm
• Width : 134 mm
• Height : 188 mm
• น้ำหนัก Weight: 1.23 kg

Download PDF



Features คุณสมบัติ

* CLA type is divided by the volume of oil tank CLA-6(350cc) and CLA-8(600cc).
* Low cost, high practicality. It can be used in diverse machinery.
* Easy to be operated by pushing the handle down for oil feeding.
* Small discharge volume and easy to install.
* The unit is equipped with reverse stopper that prevents the back-flow of oil.
* It has an oil outlet on left or right side of the unit. Dual outlets (left and right sides) are also available.

Application of Machines Equipment:

* This unit can work with the machines that do not need to feed oil at certain time.
*  It's suitable for various kinds of machine tools and automatic machinery.
น้ำหนัก 1.23 kg
