CEN01-03 ปั้มจ่ายน้ำมัน 30W,220V ระบบ PLC ถัง 3 ลิตร

• รุ่น CEN01 ไม่มีตัวจับเวลา สามารถควบคุมได้โดย PLC และสามารถทำงานร่วมกับวาล์วตัวจ่ายและอะแดปเตอร์ต่างๆ ได้หลายชนิด
• มีอุปกรณ์สวิตช์แรงดันและตั้งค่าเป็น 1 kg. / ㎝² สำหรับการตรวจสอบว่าท่อทำงานตามปกติ ข้อมูลจำเพาะมาตรฐานคือหน้าสัมผัส NC (ปิดปกติ) ซึ่งหมายความว่าหากความดันผิดปกติจะมีสัญญาณผิดปกติ NO (เปิดปกติ) ตามคำขอ
• มีตัวกำจัดประกายไฟภายในเพื่อป้องกันไม่ให้ประกายไฟเกิดขึ้นเมื่อกระแสไฟฟ้ากำลังทำงาน ตัวกำจัดประกายไฟสามารถหลีกเลี่ยงการรบกวน PLC
• มีสวิตช์ลอยที่สามารถตรวจจับปริมาณน้ำมัน จะมีสัญญาณผิดปกติโดยอัตโนมัติเมื่อระดับน้ำมันต่ำกว่ามาตรฐาน
• โปรดอย่ากดแรงป้อนน้ำมัน (ปุ่ม F) นานกว่าสามนาทีเพื่อหลีกเลี่ยงการบรรทุกเกินพิกัด เมื่ออุณหภูมิสูงถึง 100 ℃เซ็นเซอร์จะหยุดทำงานเพื่อให้มอเตอร์ทำงานต่อไปประมาณ 5 นาที
• มีเกจวัดความดันซึ่งสามารถตรวจจับแรงดันได้
• ฟังก์ชั่นคล้ายกับประเภท CEN02 ความแตกต่างคือประเภท CEN01 ไม่มีตัวจับเวลาและประเภท CEN02 ถูกควบคุมโดยตัวจับเวลา ประเภท CEN03 และ CEN04 เป็นตัวหล่อลื่นไฟฟ้าชนิดลดแรงดัน

รหัสสินค้า: CEN01-03B2 หมวดหมู่: ป้ายกำกับ: Brands:
chen ying brand

8,400.00฿ 6,720.00฿ ราคายังไม่รวมภาษี

มีสินค้าอยู่ 10

Compare

Product Description

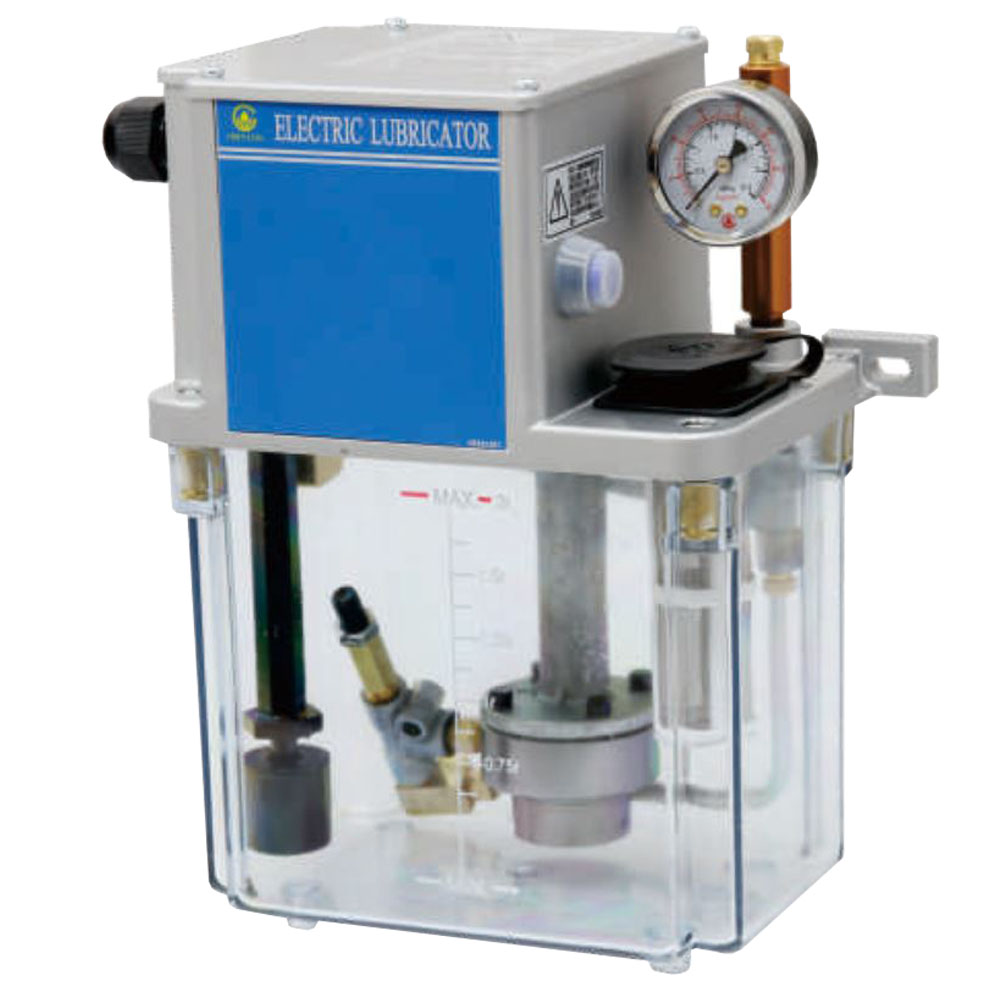

CEN01-03 ปั้มจ่ายน้ำมัน CHEN YING ระบบ PLC ถัง 3 ลิตร

Code : CEN01-03B2

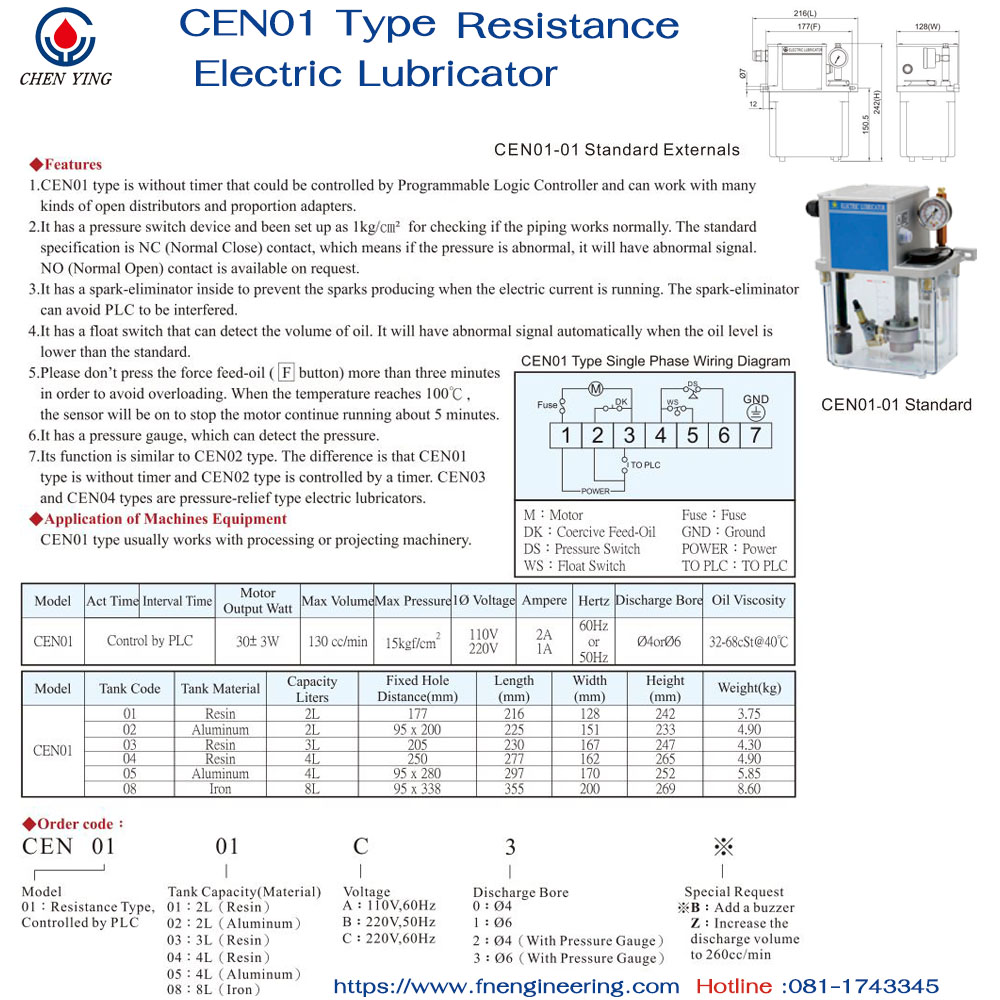

• CEN01 Type Resistance Electric Lubricator

Specification รายละเอียด

• Act Time : Control  by PLC
• Interval Time : Control  by PLC
• Tank วัสดุถัง : Resin
• Capacity Liters ความจุ : 3 Litters
• Motor มอเตอร์ : 30± 3W
• Voltage : 220 V.
• Ampere : 1A, 50Hz
• Max Volume ปริมาณสูงสุด : 130 cc / min
• Max Pressure แรงดันสูงสุด : 15 kgf / cm²
• Discharge ท่อ : Ø4  With Pressure gauge
• Oil Viscosity ความหนืดของน้ำมัน : 32-68cST /40oC
• Fixed Hole Distance (mm): 205  mm
• Length : 230 mm
• Width : 167 mm
• Height : 247 mm
• น้ำหนัก Weight: 3.85 kg



Download PDF

Features คุณสมบัติ

• CEN01 type is without timer that could be controlled by Programmable Logic Controller and can work with many kinds of open distributors and proportion adapters.
• It has a pressure switch device and been set up as 1kg/㎝² for checking if the piping works normally. The standard specification is NC (Normal Close) contact, which means if the pressure is abnormal, it will have abnormal signal. NO (Normal Open) contact is available on request.
• It has a spark-eliminator inside to prevent the sparks producing when the electric current is running. The spark-eliminator can avoid PLC to be interfered.
• It has a float switch that can detect the volume of oil. It will have abnormal signal automatically when the oil level is lower than the standard.
• Please don’t press the force feed-oil ( F button) more than three minutes in order to avoid overloading. When the temperature reaches 100℃, the sensor will be on to stop the motor continue running about 5 minutes.
• It has a pressure gauge, which can detect the pressure.
• Its function is similar to CEN02 type. The difference is that CEN01 type is without timer and CEN02 type is controlled by a timer. CEN03 and CEN04 types are pressure-relief type electric lubricators.

Application of Machines Equipment:

• CEN01 type usually works with processing or projecting machinery.
น้ำหนัก 3.85 kg
