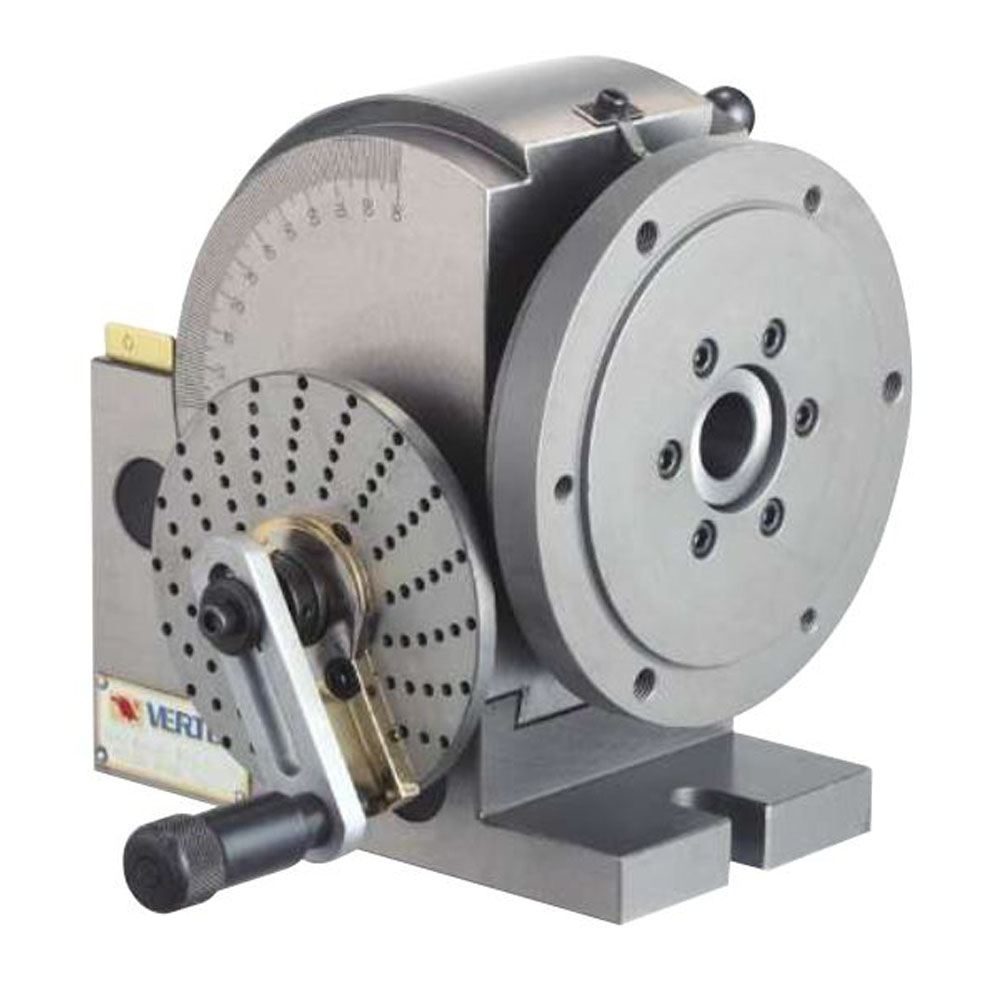

BS-0 หัวแบ่ง 5 นิ้ว

• Dividing Head can divide in any angle by the direct, in-direct, or different methods. The ratio between the warm and the warm gear is 40:1.
• Hardened and ground spindle is rigidly held in a taper roller bearing. Worm is hardened and ground also.
• The swivel head can be locked of any angle from 10˚ below horizontal to 90˚ vertical-precision fitting to base assures smooth rotation.
• All models have threaded spindle nose and 24 hole dividing plate with easy conversion to fast direct indexing on numbers 2,3,4,6,8,12, and 24.
• Easy indexing of al numbers from 2 to 50 and many numbers from 52 of 380. Model BS-2 is also equipped for different indexing for all numbers from 2 to 380, and for spiral cutting.
• Accurate precision, little backlash, fine appearance and strong structure so can assure smooth rotation
• Made in taiwan

รหัสสินค้า: BS-0 หมวดหมู่: Brands:

20,760.00฿ 12,456.00฿ ราคายังไม่รวมภาษี

Compare

Product Description

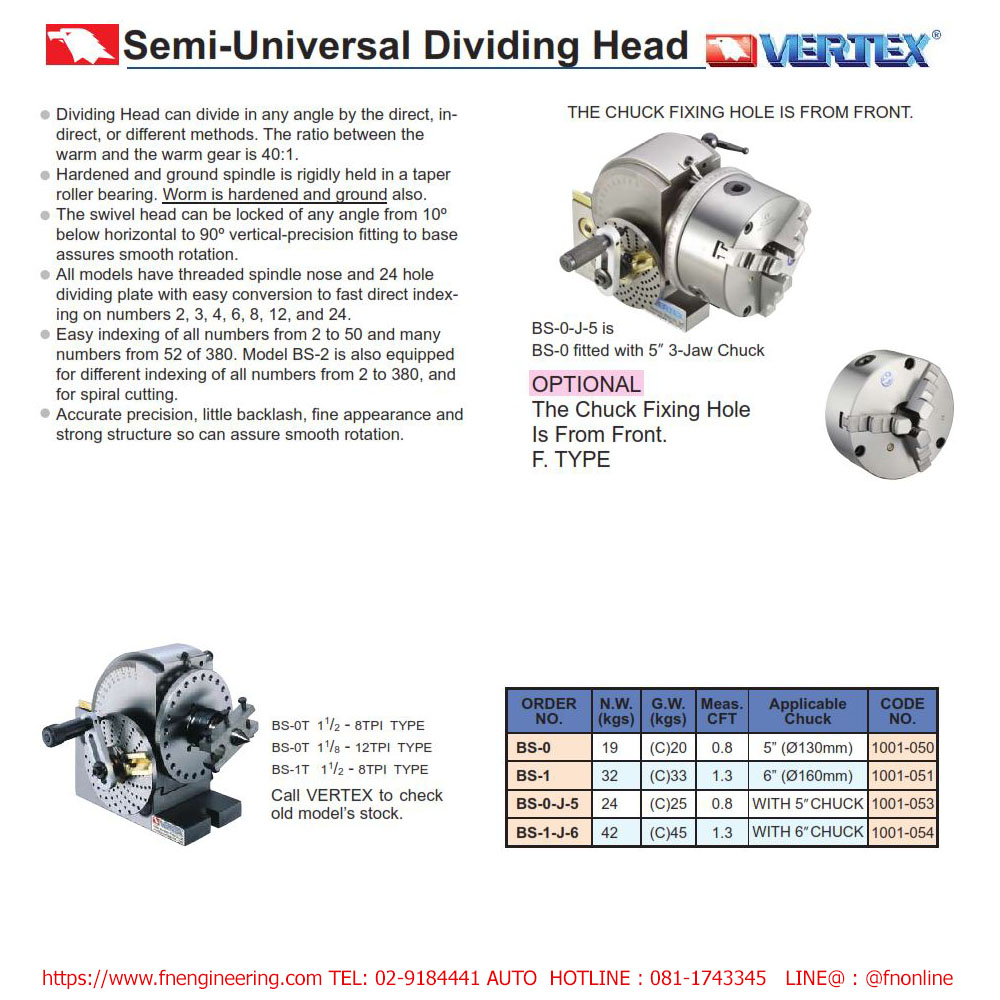

BS-0 หัวแบ่ง 5 นิ้ว

Code : BS-0

Specifications ข้อมูลจำเพาะ

STANDARD ACCESSORIES

OPTIONAL The chuck fixing hole is from front.

Download PDF

► Dividing Head can divide in any angle by the direct, in-direct, or different methods. The ratio between the warm and the warm gear is 40:1.
► Hardened and ground spindle is rigidly held in a taper roller bearing. Worm is hardened and ground also.
► The swivel head can be locked of any angle from 10˚ below horizontal to 90˚ vertical-precision fitting to base assures smooth rotation.
► All models have threaded spindle nose and 24 hole dividing plate with easy conversion to fast direct indexing on numbers 2,3,4,6,8,12, and 24.
► Easy indexing of al numbers from 2 to 50 and many numbers from 52 of 380. Model BS-2 is also equipped for different indexing for all numbers from 2 to 380, and for spiral cutting.
► Accurate precision, little backlash, fine appearance and strong structure so can assure smooth rotation
น้ำหนัก 19 kg
